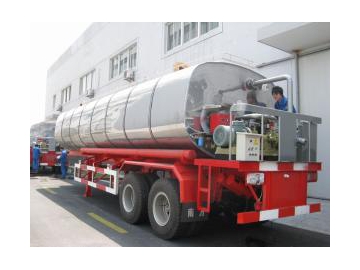

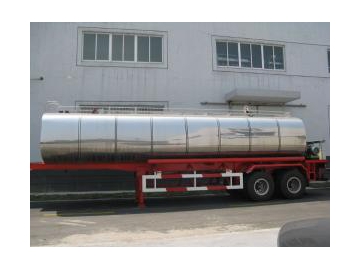

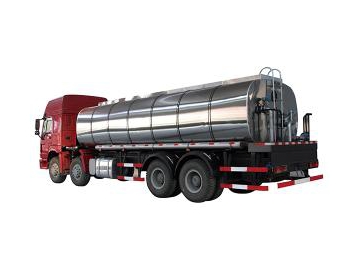

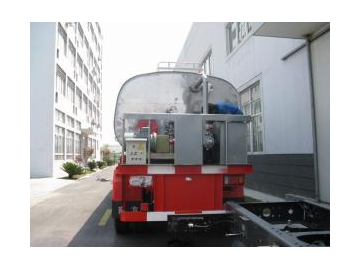

Asphalt Transport Tank
Brief Introduction
Based on the study of other like products, we developed LMT9200GLB, LMT9250GLB, LMT9300GLQB and LMT9450GLB asphalt transport tanks to meet the needs of transporting asphalt during the construction. With special insulation structure and insulation cover wrapped by thermal insulation material, as well as two high power burners, the asphalt transport tank could realize long-distance transport of a wide variety of asphalt with large capacity. All the working devices including the asphalt pump are driven by the hydraulic system. The asphalt transport tank, as one high-tech product, features easy operation and fast construction speed and is an ideal tool for transporting asphalt.
| Name | LMT9200GLB | LMT9250GLB | LMT9230GLB | LMT9450GLB |
| Overall Dimension | 10000×2500×3350 | 10000×2500×3550 | 10000×2500×3550 | 12390×2500×3680 |
| Tank Capacity (m3) | 20 | 25 | 30 | 45 |
| Complete Loading Weight (KG) | 9860 | 9860 | 9860 | 10865 |
| Wheelbase (mm) | 5800 1350 | 5800 1350 | 5800 1350 | 6780 1320 1320 |
| Wheel Tread (mm) | 1850 | 1850 | 1850 | 1840 |
Construction Case

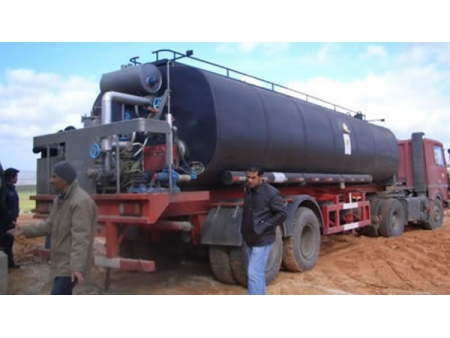

- Construction in Angola
