Handheld laser welder for precise metal fabrication

Handheld laser welder for precise metal fabrication

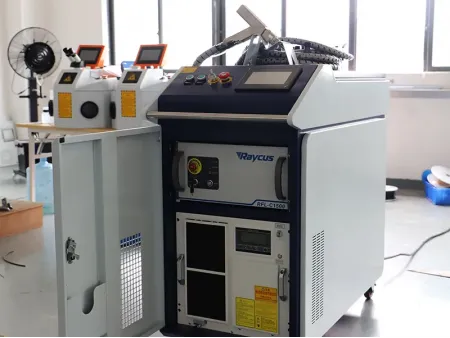

Our fiber laser welding machine is equipped with the latest generation of laser generators and wobble welding heads, making it ideal for a wide range of metal materials including aluminum alloy, stainless steel, iron plate, and galvanized sheet. This technology is extensively used in various applications such as the production of kitchen utensils, metal frames for elevators, medical equipment, electrical distribution boxes, and stainless steel furniture.

  • Features
  • Specifications
  • Examples
  • Components
Features
  • Enhanced Welding Speed
    Achieves welding speeds 2-3 times faster than traditional methods, offering significant labor cost savings by potentially reducing the workforce needed.
  • Efficiency and Durability
    Low material consumption and long-lasting machine parts minimize operational costs over time.
  • User-Friendly Operation
    Designed for ease of use, allowing even novices to produce high-quality welds.
  • Superior Weld Quality
    Produces smooth and aesthetically pleasing weld seams, reducing the need for post-weld grinding and thus saving time and costs.
  • Advanced Welding Technology
    The wobble welding head ensures a wider weld, boosting welding efficiency.
Specifications
Machine type Fiber Laser Welding Machine
Laser power 1000W,2000W,3000W (optional)
Laser wavelength 1070nm
Fiber length Standard10M / Maximum 15M
Fiber length 0-120mm/s
Chiller Industrial chiller
Ambient temperature 15~35 ℃
Welding thickness 0.5-3mm
Working voltage 220V

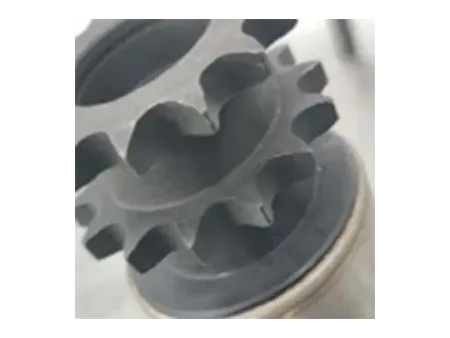

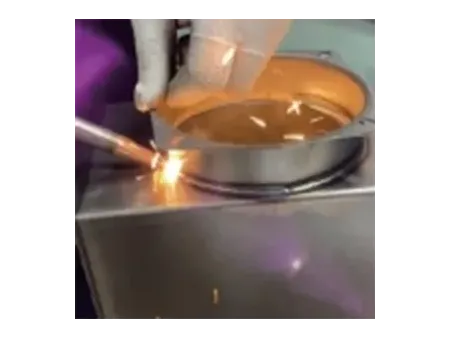

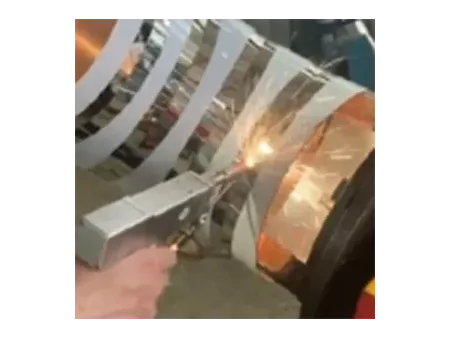

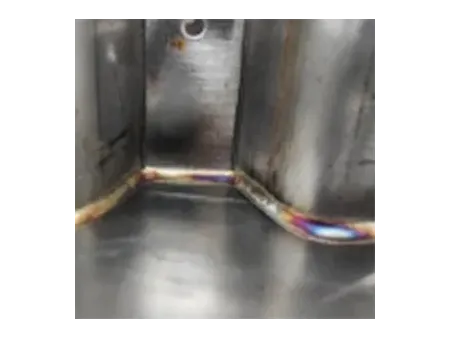

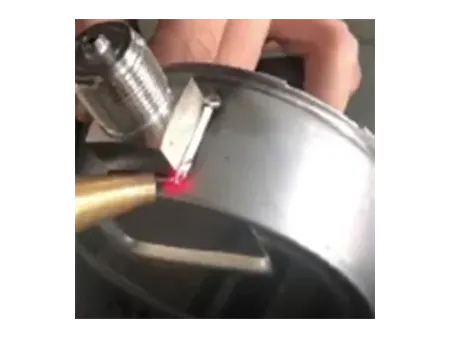

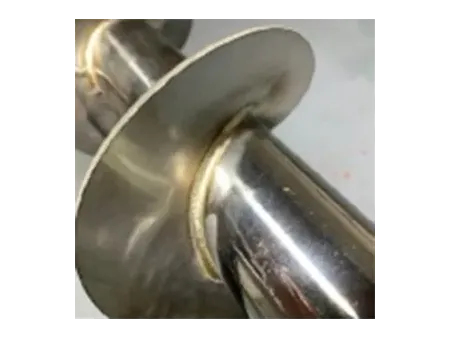

Weld Display
Key Components

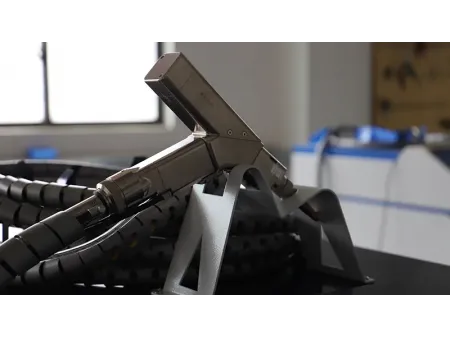

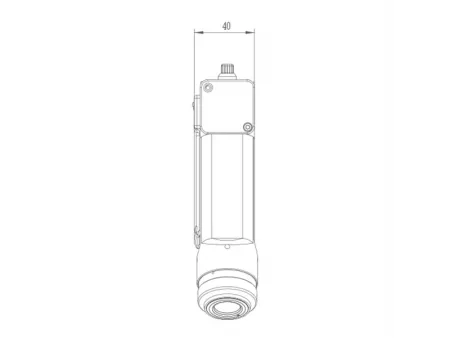

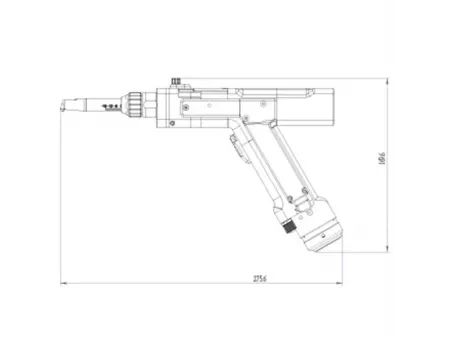

Laser Welding Head

  • Featuring a sophisticated internal design and an interactive control system, our laser welding head expands the tolerance range of processed parts and weld width, ensuring aesthetically pleasing welds.
  • Ergonomically designed for lightweight and comfortable handling, our welding head allows for single-handed operation, simplifying the welding process.
  • Equipped with temperature control detection capabilities, it ensures accurate monitoring and feedback to protect the lens surface.
  • The temperature control monitoring function allows for customizable temperature settings based on on-site environmental conditions, ensuring optimal performance and longevity.
  • Utilizing a double protective lens structure beneath the focusing lens, our design enhances lens protection and durability.
  • The drawer-type structure of the focusing lens facilitates easier replacement and maintenance for enhanced convenience.
  • Our innovative copper nipple-connected pipe employs an anti-slag structure to prevent lens contamination from welding residues, prolonging lens lifespan.
  • Terminal plug-in type end joints and high-flexibility wiring between the motor and drive board minimize potential issues such as motor swinging, ensuring stable performance.

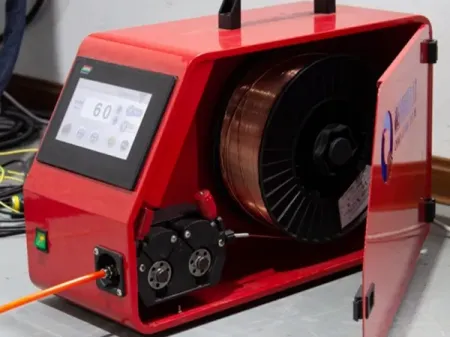

  • The welding head offers versatility with optional wire welding heads and copper nozzles with various angles to meet diverse welding requirements.

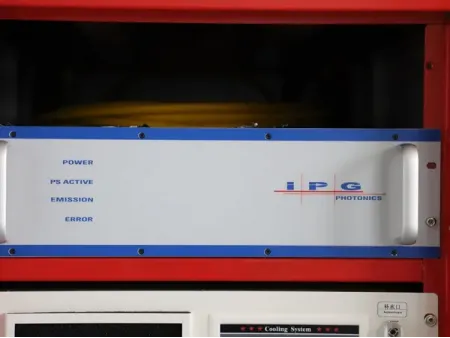

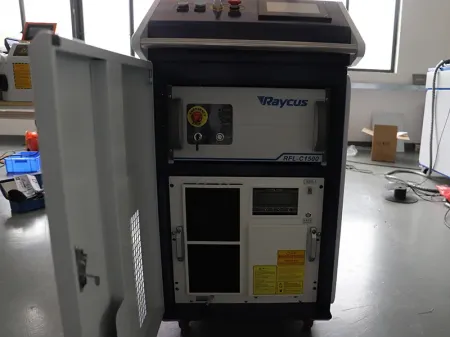

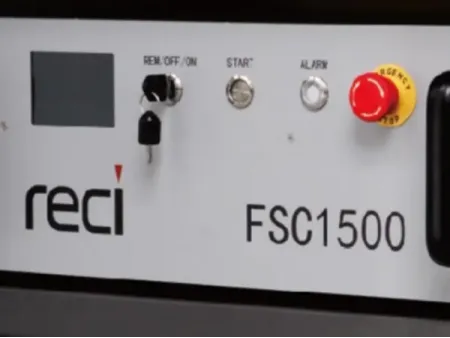

Laser Generator
Our laser welding machines offer compatibility with a range of laser generators, providing flexibility to suit specific application needs.

Singlemode vs. Multimode

Singlemode Multimode
Smaller welds and greater welding accuracy Less focused laser output and less welding accuracy.
Higher energy densities Faster processing of larger surfaces
ell-suited for precision tasks like battery tab welding Suitable for applications where speed is prioritized over precision
