Holographic Heat Transfer Sheet
Application

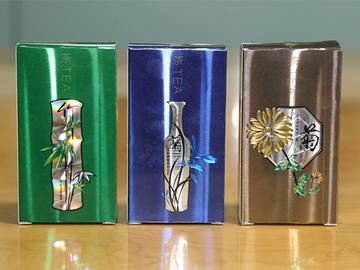

Holographic heat transfer sheet is mainly applied in the packaging of tobacco products, wine, cosmetics, pharmaceuticals, food, and many other consumer goods.
| Product name | 232g cross grain light beam holographic transfer silver sheet | 155g holographic surface transfer sheet | 232g transparent cross grain light beam holographic transfer sheet |
| Item No. | 1079 | 1122 | 1180 |
| Material | SBS | One-side coated paper | SBS |
| Patterns | Light beam | Holographic surface | Cross grain light beam |
| Application | Cigarette, gift, wine, pharmaceutical packaging, etc. | Cigarette, gift, wine, pharmaceutical packaging, etc. | Cigarette, gift, wine, pharmaceutical packaging, etc. |
| Color | Silver | Silver | Transparent |
| Thickness | 285-305μm | 135-145μm | 285-300μm |
| Paper Core | 12" | 12" | 12" |
| Roll Width | 600-1100mm (According to order) | 600-1100mm (According to order) | 600-1100mm (According to order) |
| Roll Length | 6000m (According to order) | 6000m (According to order) | 6000m (According to order) |
| Cut Size | 740610mm (According to order) | 740610mm (According to order) | 740610mm (According to order) |
| Stiffness | longitudinal direction≧5.0, transverse direction≧2.5 | longitudinal direction≧5.0, transverse direction≧2.5 | longitudinal direction≧5.0, transverse direction≧2.5 |
| Brightness | 75 | 75 | 75 |
| Opacity | ≧90 | ≧90 | ≧90 |
| Smoothness | ≧400s | ≧400s | ≧400s |
| Absorbency | obverse≦40g/m2, reverse≦100g/m2 | obverse≦40g/m2, reverse≦100g/m2 | obverse≦40g/m2, reverse≦100g/m2 |
| Surface Energy | ≧44mN/m | ≧44mN/m | ≧44mN/m |
| Tensile Strength | longitudinal direction≧9.5N | longitudinal direction≧9.5N | longitudinal direction≧9.5N |
| Corona Treatment | No corona | No corona | No corona |
| Print Temperature | 25℃ 50-60% | 25℃ 50-60% | 25℃ 50-60% |
| Ink Absorbency | 15-25% | 15-25% | 15-25% |
| Capacity | 800000m per day (weight based on width) | 800000m per day (weight based on width) | 800000m per day (weight based on width) |
Note: Above items can be changed to suit customer's requirements.
Features
Holographic heat transfer sheet has a unique, metallic, highly glossy aluminum coating that is beautiful and lustrous. The paper is smooth and not easily creased, maintaining strong stiffness. The paper can also be coated with a variety of ground coats to meet various printing requirements to achieve optimal graphical effects. Also, our holographic laser technology has a higher demand for mold pressing and can achieve outstanding anti-counterfeit properties.
Principle
Holographic heat transfer sheet is covered with rainbow film. The holographic patterns are first copied to the base film by holographic laser technology and then an aluminum layer is applied to the film with the technology of vacuum aluminum plating technology. Finally, a variety of holographic films are laminated or transferred to the paper by high speed laminated machine and the prepress process can be applied in the meantime. The holographic patterns are colorful and beautiful and have a strong metallic looking, stable and reliable printability with better anti-counterfeit effects.
Jiaxin specializes in making holographic packaging materials with custom made products since 1995, as a holographic heat transfer sheet manufacturer and supplier with many years, we are offering holographic film and paper, metallic paper and film, anti-counterfeit labels with high quality.
