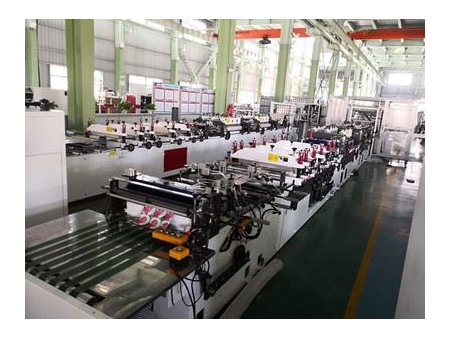

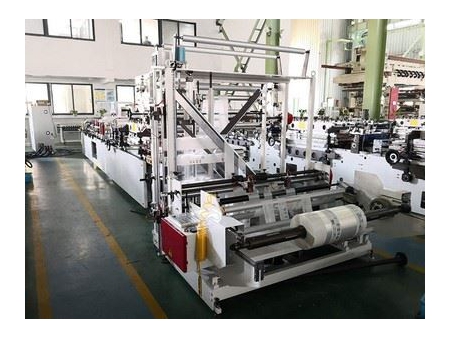

Three Side Sealing Bag Making Machine, 400A

Three Side Sealing Bag Making Machine, 400A
Three Side Sealing Bag Making Machine, 400A
Three Side Sealing Bag Making Machine, 400A
Request a Quote
View All: http://witymachinery.com/2-2-sealing-bag1.html

This three side & central sealing bag making machine is for making 3 side sealing, central sealing and central sealing with gusset bag.

Specification
Model
400A
500A
600A
Unwind Width 800mm 1000mm 1200mm
Pouch Making Height 70-380mm× N (N=SKIP≤6)
Pouch Making Width 3 side seal 70-380mm 70-480mm 70-580mm
Central seal 100-350mm 100-400mm 100-450mm
Central seal with gusset 100-230mm(G=60×2） 100-280mm(G=60×2） 100-330mm(G=60×2）
Speed 100-170pcs/min 100-170pcs/min 100-170pcs/min
Line Speed 35m/min 35m/min 35m/min
Total power 24kw 26kw 34kw
Weight 3500kg 3850kg 4300kg
Overall Dimension 8×1.75×1.8m 8×1.95×1.8m 8×2.1×1.8m
