Multifunctional Side Seal Bag Making Machine Manufacturer

Multifunctional Side Seal Bag Making Machine

Request a Quote

View All: http://plastic-bagmachines.com/1-4-1-multifunctional-side-seal-bag-making-machine.html

Computer controlled plastic bag making machine with hot cutting and heat sealing

Video

This multifunctional side seal bag making machine is suitable for hot cutting and heat sealing of a variety of bag types, including bakery bags, sack packaging bags, food bags, and more.

BOPP, OPP and PE plastic bags can all be created with or without prints by using this side seal bag making machine.

This plastic bag making machine features servo motor control, Delta inverter, and Omron temperature controller, enabling it to run for extended service life. Additionally, it is equipped with NSK bearings imported from Japan.

Technical Parameters

Model	RQL-600	RQL-800	RQL-1000
Max. width of bag	600 mm	800 mm	1000 mm
Max. length of bag	700 mm	700 mm	700 mm
Max. width of bag making	500 mm	700 mm	900 mm
Bag making speed	40-200 pcs/min	40-200 pcs/min	40-200 pcs/min
Total power	3.6 kW	3.8kW	4.7 kW
Weight	1000 kg	1100 kg	1200 kg
Dimensions	350011001800 mm	350012001800 mm	350014001800 mm

Application

This side seal bag making machine is versatile for making various plastic bags such as bakery bags, sack packaging bags, food bags, and more.

Details

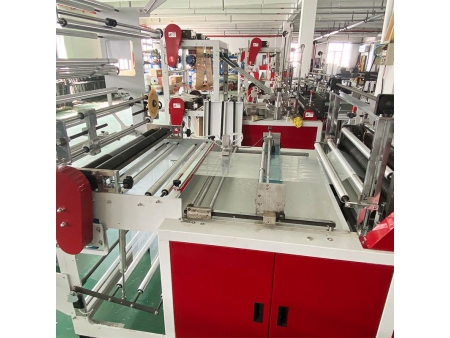

1. Sealing Unit
  Sealing knife is made from hard steel that won't easily break
  A heating tube allows for quick heating from the insideautomatically

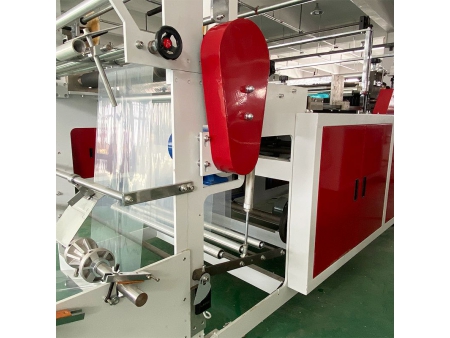

1. Unwinder Motor
  AC motor with gearbox, and with a power rating of 0.37kW
  It has a Delta inverter for controlling, which gives it an incredibly long service life of more than 10 years - outperforming DC motor controller
1. Photocell
  Panasonic photocell from Japan
1. Electric Components
  Delta inverter is utilized for the main motor, unwinder, and conveyor, helping provide a stable and efficient output
  Omron temperature controller and Fortec relay provide efficient temperature control

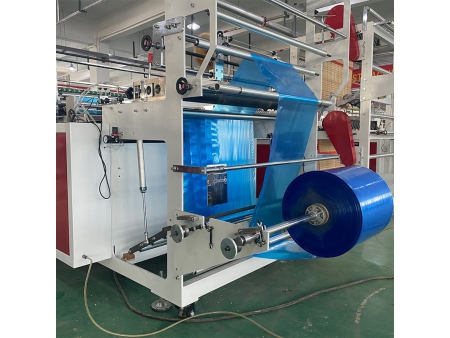

Unwinder Equipped with EPC and automatic tension control, able to adjust tension and edge position control (EPC) automatically
Gusseting Unit Plastic gusset plates allow for making bottom gussets
Punching Unit 6mm punching holes can be made, die-cutting puncher device is also an option
