Automatic capping machine for tightening press-on or snap-on caps on plastic and glass bottle

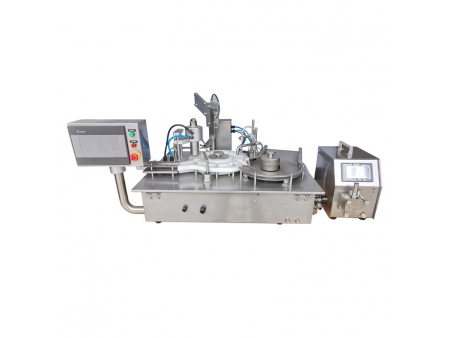

Snap capper is mainly composed of a touch screen, PLC, press on head, electrical control system, and support frame. This capping machine is specifically designed for tightening aluminum cap onto vials, cartridge bottles, glass bottles, hard plastic bottles, and other containers. Our snap capper is suitable for automatic capping of aluminum-plastic caps and pure aluminum caps, with a production capacity of 20-30 caps per minute. This capping equipment can significantly reduce the user's equipment investment costs.

Applications

Snap-on capper is frequently used in industries such as pharmaceuticals, food, and laboratories to meet the needs of small to medium-scale production and experiments.

Specifications

Capping Method	Chuck capping
Cap Diameter	13mm, 20mm, 8mm, 32mm (customizable)
Production Capacity	20-30BPM
Bottle Size	≤H200mm
Air Source	0.6-0.8Mpa
Power Source	AC220V; 50Hz; 1Phase

Features

Compared to traditional semi-automatic flying knife capping machines, snap capper offers more stable capping effect, which is not affected by the operator's skills.

Snap-on capper has high work efficiency, aesthetically pleasing capping results, and safer operation for the operators.

Compared to traditional flying knife capping machines, snap capper significantly reduces the generation of aluminum debris during the capping process.

By replacing the capping head, the same machine can be used for capping different sizes of caps.

Optional

Customized press on capping head

Cap sorting machine (vibrating tray)

Bottle unscrambler machine

Plug sorting machine (vibrating tray)

Filling machine

FAQ

Snap capper is suitable for tightening press-on or snap-on caps on hard plastic bottles and glass bottles. In order to accurately determine suitability, buyers need to provide photos of the bottles and caps, bottle dimensions, cap dimensions, and other necessary information, and contact our sales team for assistance in confirming the appropriate machine configuration.

While local service points are limited, buyers may seek assistance from local dealers, if available. Prior to leaving the factory, the machine undergoes complete assembly and testing and is shipped fully assembled, requiring no special installation or debugging. Simply power on the machine for use and reference the manual or instructional videos for parameter settings. In the event of any issues, contact the seller for online guidance and support.

Snap capper comes with a 12-month warranty, excluding consumable parts. Within the warranty period, replacement parts are provided at no additional cost (excluding shipping expenses), while reasonable fees apply for parts outside the warranty coverage. Lifetime free remote technical support is also offered for the equipment.

Contact us promptly for assistance in resolving the issue. We can conduct real-time remote fault diagnosis and promptly ship replacement parts if needed.
