Three Color PVC Rain Boot Injection Molding Machine

Request a Quote

View All: http://footwear-makingmachine.com/2-2-three-color-pvc-rain-boot-injection-molding-machine.html

Rotary injection molding machine for producing plastic rain boots

Raw material: PVC

Applications:

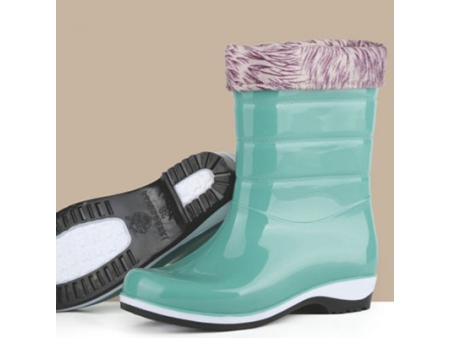

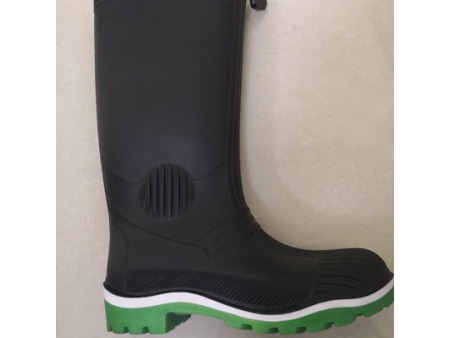

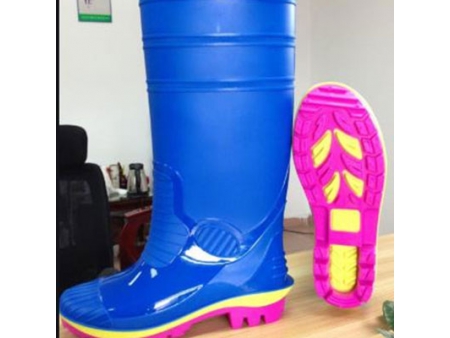

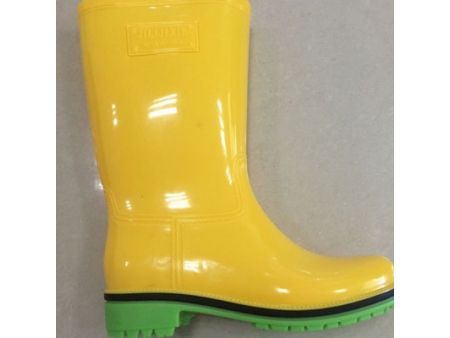

one-color/two-color/three-color rain boots

Rotary injection molding machine for producing plastic rain boots

The PVC injection molding machine is used to produce rain boots in one, two and three colors
The clamping force is balanced to ensure high shoe quality;
It is easy and convenient to install and detach molds;
The rain boot making machine is equipped with 4 sets of servomotors which deliver the same performance while using less energy than other types of motors.

Technical Specifications

Item	Unit	Specifications
Model		6316N1	6316B1
Raw material		PVC	PVC
Station		12, 14 or 16	12, 14 or 16
Max. injection volume	cm³/cc	1270/770/565	660/565/300
Rated injection pressure	kg/cm²	0-150,0-120,0-120	0-120
Power of electric heating	kW	15/13/11	13/13/11
Temperature setting	stage	5	5
Screw rotational speed	RPM	0-150	0-150
Screw diameter	mm	Ø90,Ø70,Ø60	Ø65,Ø65,Ø50
Motor power	kW	22,18.5,15	15,15,11
Clamping force	T	250/300	180/120
Max. mold size	mm	715420200	520390200
Machine dimensions	mm	722063502560	675060002340
Gross weight	kg	22000	18000

Features

The three-color rain boots making machine is widely used to produce one, two and three-color rain boots;

The injection molding machine is equipped with an industrial interface, a PLC and a touch screen;

The hydraulic system with a dual-ratio control valve better controls the rain boot quality since it can be used to adjust hydraulic pressure and rate of flow;

Digital measurement ensures stable production;

The control panel function design is clear and easy to understand;

The rain boot injection molding machine is equipped with a robotic arm to realize fully automatic operation;

The use of the servomotor system significantly saves up to 40% of energy compared to traditional motors.
