Two Color PVC Slipper Injection Molding Machine
Request a Quote
View All: http://footwear-makingmachine.com/2-4-two-color-pvc-slipper-injection-molding-machine.html

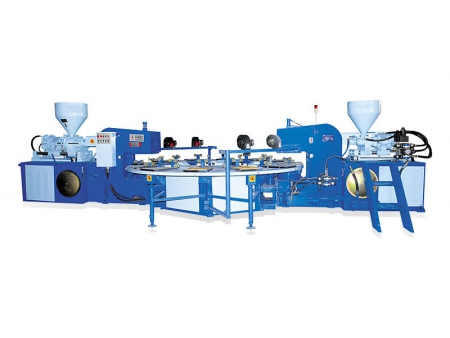

Rotary air blowing injection molding machine for producing plastic slippers and sandals
Raw material: PVC
Applications:

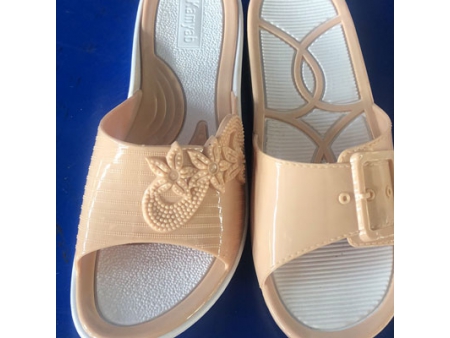

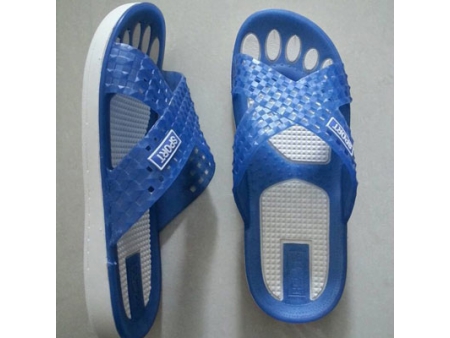

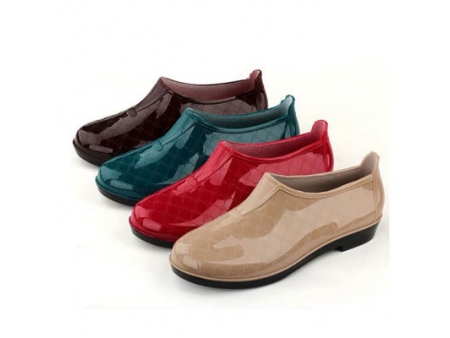

One-color/two-color slippers and sandals
- The PVC air blowing injection molding machine is used to produce one-color and two-color PVC slippers and sandals;
- The PCL control system is flexible to perform multiple tasks and operations;
- The operation system is designed to be easy to learn and convenient to operate;
- The slipper making machine features large injection volume and strong clamping force;
- The feeding nozzle switch saves working time and increases output;
- The dual-ratio hydraulic control valve enables adjustment of feeding speed and injection volume;

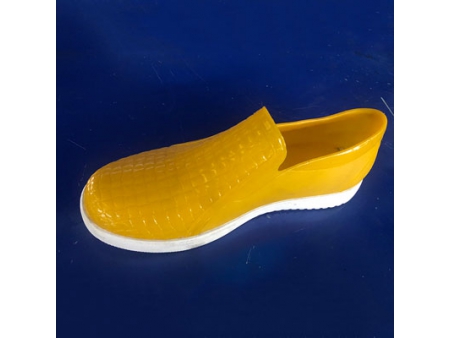

- The machine is used to produce V-shape shoes in one color and two colors.
- Products are made based on specific needs.
Technical Specifications
| Item | Unit | Specifications | |
| Model | | | |
| Raw material | PVC | PVC | |
| Max. number of stations | 20 | 24 | |
| Clamping force | T | 80 | 80 |
| Mold height | mm | 50-300 | 50-300 |
| Screw diameter | mm | Ø70,Ø60 | Ø70,Ø60 |
| Screw rotational speed | RPM | 0-150 | 0-150 |
| Max. injection volume | cm³/cc | 770,565 | 770,565 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 |
| Motor power | kW | 18.5,15 | 18.5,15 |
| Power of heating | kW | 13,11 | 13,11 |
| Temperature setting | stage | 4 | 4 |
| Max. mold size | mm | 400*220*300 | 400*220*300 |
| Machine dimensions | mm | 8200*7550*2650 | 8300*7650*2650 |
| Gross weight | kg | 14000 | 14500 |
