Two Color PVC Rain Boot Injection Molding Machine
Request a Quote
View All: http://footwear-makingmachine.com/2-1-two-color-pvc-rain-boot-injection-molding-machine.html
Rotary injection molding machine for producing plastic rain boots
- The clamping force is balanced to stabilize product quality;
- It is easy and convenient to install and detach molds;
- Servo hydraulic system generates energy efficiently as it saves 40% of electricity;
- The injection molding machine features high productivity as it is able to produce 90-100 pairs of shoes within one hour;
- The robotic arm that is able to automatically remove flash is optional.
Material: PVC
Technical Specifications
| Item | Unit | Parameters | ||
| Model | | | | |
| Raw material | PVC | PVC | PVC | |
| Number of stations | 12 | 14 | 16 | |
| Max. injection volume | cm³/cc | 1270/770 | 1270/770 | 1270/770 |
| Rated injection pressure | kg/cm² | 0-150,0-120 | 0-150,0-120 | 0-150,0-120 |
| Power of electric heating | kW | 15 13 | 15 13 | 15 13 |
| Temperature setting | stage | 5 | 5 | 5 |
| Screw rotational speed | RPM | 0-150 | 0-150 | 0-150 |
| Screw diameter | mm | Ø90, Ø70 | Ø90, Ø70 | Ø95, Ø75 |
| Motor power | kW | 22,15 | 22,18.5 | 22,18.5 |
| Clamping force | T | 250 | 250 | 250 |
| Max. mold size | mm | 680*420*200 | 680*420*200 | 680*420*200 |
| Machine dimensions | mm | 6350*5260*2460 | 6350*5600*2460 | 6850*6000*2460 |
| Gross weight | kg | 18700 | 19500 | 20000 |
Applications:

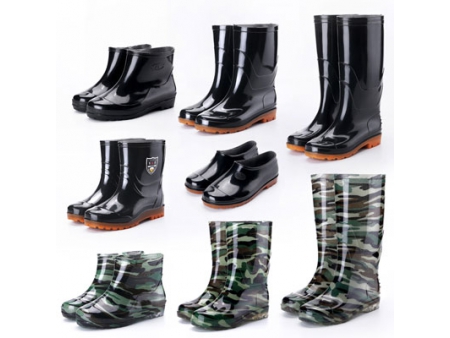

1/2 color adult high rain boots
| Item | Unit | Specifications | |
| Model | | | |
| Raw material | PVC | PVC | |
| Number of stations | 12 | 14 | |
| Max. injection volume | cm³/cc | 660/330 | 770/565 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 |
| Power of electric heating | kW | 11 9 | 13 11 |
| Temperature setting | stage | 5 | 5 |
| Screw rotational speed | RPM | 0-150 | 0-150 |
| Screw diameter | mm | Ø65,Ø50 | Ø70,Ø60 |
| Motor power | kW | 15,11 | 18.5,15 |
| Clamping force | T | 120 | 120 |
| Max. mold size | mm | 460*350*180 | 460*350*180 |
| Dimensions | mm | 5160*4500*2120 | 6000*4800*2120 |
| Gross weight | kg | 13000 | 13500 |
Applications:

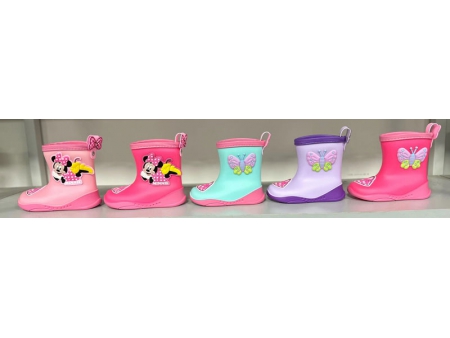

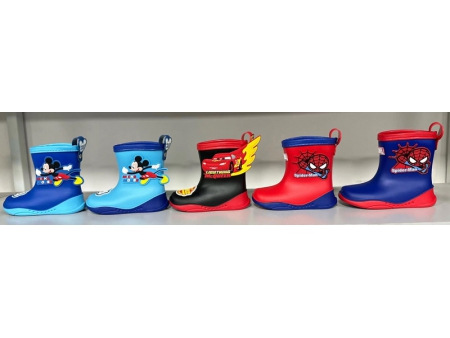

1/2 color kids rain boots
| Item | Unit | Specifications | |
| Model | | | |
| Raw material | PVC | PVC | |
| Number of stations | 12 | 14 | |
| Max. injection volume | cm³/cc | 770/660 | 770/660 |
| Rated injection pressure | kg/cm² | 0-150, 0-120 | 0-150, 0-120 |
| Power of electric heating | kW | 13 11 | 13 11 |
| Temperature setting | stage | 5 | 5 |
| Screw rotational speed | RPM | 0-150 | 0-150 |
| Screw diameter | mm | Ø70,Ø65 | Ø70,Ø65 |
| Motor power | kW | 18.5,15 | 18.5,15 |
| Clamping force | T | 180 | 180 |
| Max. mold size | mm | 520*390*200 | 520*390*200 |
| Dimensions | mm | 6750*5210*2345 | 6360*4950*2345 |
| Gross weight | kg | 14300 | 15000 |
Applications:

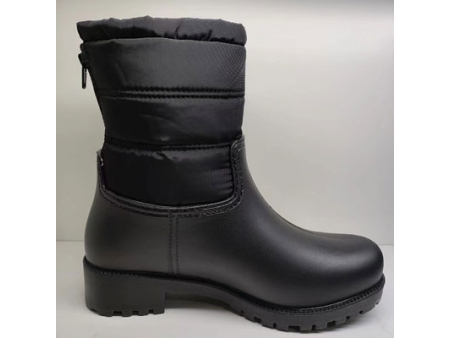

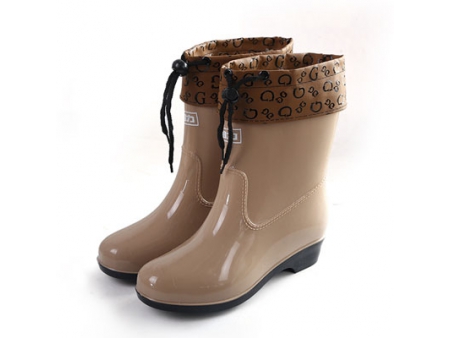

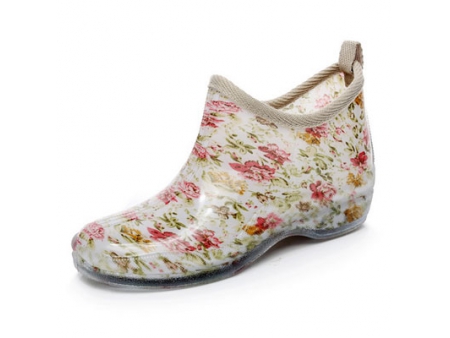

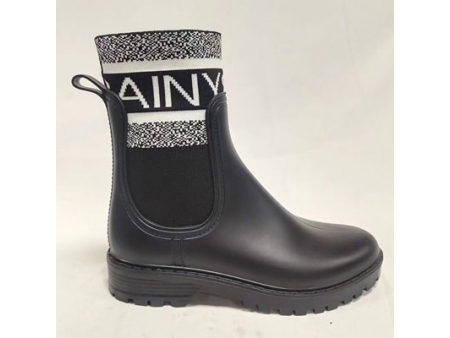

one-color/two-color adult mid-height and short rain boots
Features
- The injection molding machine is used to produce one-color and two-color PVC rain boots;
- The control system consists of an industrial interface, a PLC and a touch screen.
- The hydraulic system with the dual-ratio control valve enables independent adjustment of pressure and rate of flow to produce high-quality shoes;
- The shoe making machine adopts digital measurement to precisely control shoes quality;
- The operator-friendly panel design enables easy and convenient operation;
- Equipped with the robotic arm, the shoe making machine realizes fully automatic operation to save labor and improve efficiency;
- The servomotor achieves the same performance as the traditional motor while consuming less energy.
