LQ-BTA-450 / LQ-BM-500

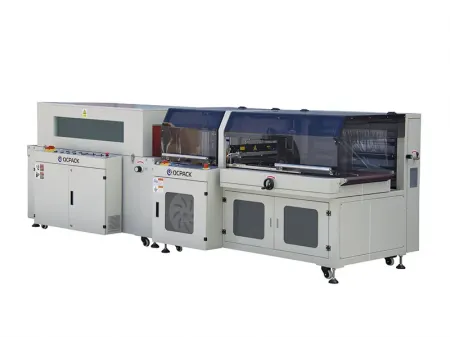

Shrink packaging machine combining shrink tunnel and L-bar sealer

  • Our automatic L-sealer shrink wrapping machine is designed to efficiently package products in various industries, including food, cosmetics, stationery, hardware, daily use items, and pharmaceuticals. This wrapping system combines a shrink tunnel and an L-bar sealer to ensure secure, high-quality packaging for a wide range of product sizes.

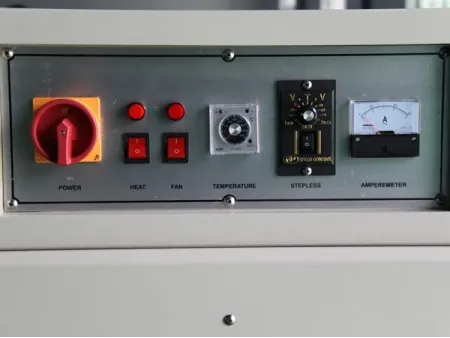

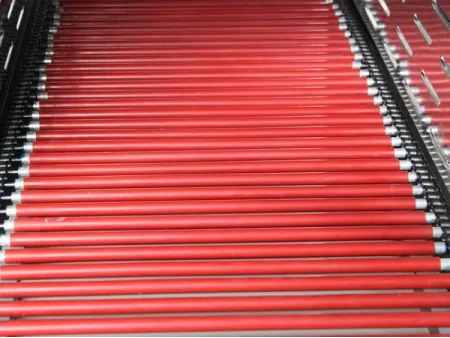

    Main Components
    Specifications
    Model LQ-BTA-450 LQ-BM-500
    Max. Package Size (L H)≤500 (W H)≤430 (H)≤150mm (L)700×(W)400×(H)200mm
    Max. Sealing Size (L)550×(W)450mm (L)1000×(W)450×(H)250mm
    Packaging Speed 30-35 packs/min 0-15m/min
    Power Supply 220V, 50Hz, 1.3kW 380V, 50Hz, 12kW
    Air Pressure 5.5kg/cm³ /
    Weight 500kg 260kg
    Overall Dimensions 1800×800×1600mm 1300×700×1400mm
    Features
    • Developed through independent research, this fully automatic L-sealer is perfect for mass production lines, featuring auto-feeding, conveying, sealing, and shrinking in one seamless process

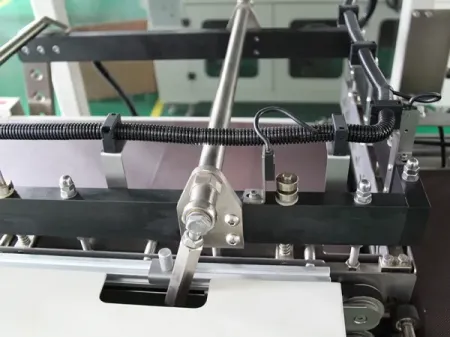

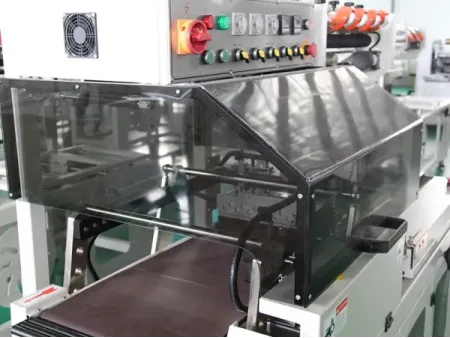

    • The sealing device features a vertically driven horizontal blade and an advanced thermostatic side cutter, ensuring strong, straight sealing lines positioned perfectly in the middle of the product
    • Adjusting for different product sizes is simple and reliable, requiring just a hand wheel rotation

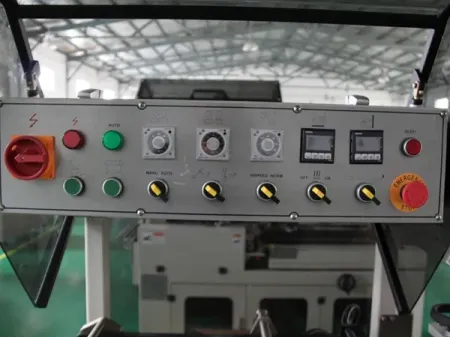

    • The advanced PLC programmable controller includes safety protections and alarm devices, enabling continuous sealing without replacement and simplifying maintenance
    • Precise film length control is achieved through a combination of electric eye detection and time relay, enhancing the shrink wrap effect
    • Two sets of horizontal and vertical electric eyes facilitate easy switching for thin or small packages, streamlining the sealing and packaging operations

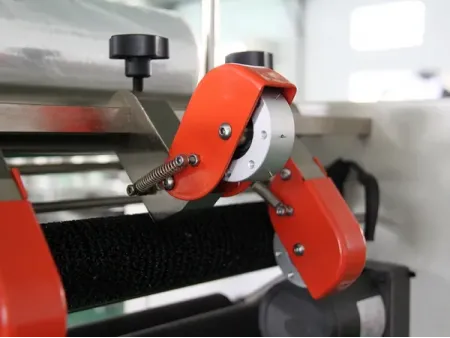

    • The automatic rolling waste material system, managed by a separate motor, prevents waste material from becoming too loose or tight, making removal straightforward
    • Optional feeding table and collecting conveyor enhance the flexibility of the packaging process
