Automatic Side Sealing Shrink Wrapping Machine (for Long Items)
Request a Quote
LQ-BTH-700 / LQ-BM-700L
Shrink packaging machine combining shrink tunnel and high speed side sealer
For businesses that need to package long items like wood and aluminum, our automatic side sealing shrink wrapping machine offers an efficient and high-speed option. This wrapping machine combines a shrink tunnel with a side sealer to provide uniform and reliable packaging. With an advanced imported PLC programmable controller and user-friendly touch screen, it ensures smooth operation and easy adjustments. Safety protection and alarm devices further enhance its reliability, making it a top choice for various industrial packaging needs.

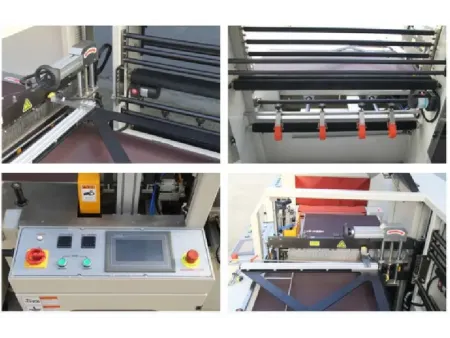

Main Components
Specifications
| Model | ||
| Max. Package Size | L: No Limited (W H)≤ 650mm (H) ≤ 250mm | (L)No limited×(W)680×(H)350mm |
| Max. Sealing Size | (L)No limited (W H)≤ 700mm | (L)2200×(W)700×(H)400mm |
| Packaging Speed | 1-25 packs/min | 0-30m/min |
| Power Suppy | 380V/50Hz 3kW | 380V/50Hz 16kW |
| Max. Current | 6A | 32A |
| Air Pressure | 5.5kg/cm³ | / |
| Weight | 760kg | 630kg |
| Overall Dimensions | (L)2250×(W)1420×(H)1300mm | (L)2504×(W)1300×(H)1400mm |
Features
- The side-sealing design accommodates products of any length, eliminating the constraints of traditional shrink wrap systems and expanding your packaging capabilities
- Easily adjust the sealing line height to match the dimensions of your products, ensuring a secure and professional-looking seal every time
- An advanced PLC programmable controller and user-friendly touchscreen interface simplify operation and enable easy customization of packaging parameters
- The sealing knife, crafted from aluminum and coated with DuPont Teflon, ensures clean, precise cuts without sticking or residue. Built-in safety features protect operators and prevent accidental cutting
- The automatic film feeding and punching device removes excess air from the packaging, creating a tight, wrinkle-free finish that enhances product presentation and protects the contents
- Imported photoelectric sensors from USA Banner provide accurate horizontal and vertical detection, enabling precise sealing of even thin and small items
- The manually adjustable film-guide system and feeding conveyor platform accommodate a wide range of product widths and heights. Simple hand wheel adjustments eliminate the need for mold changes, making it easy to switch between different product sizes The shrink tunnel features advanced bottom circulation blowing with adjustable direction and volume, controlled by a double frequency inverter, ensuring consistent heat distribution for optimal shrink results

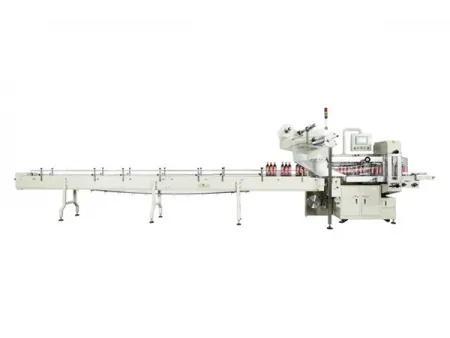

Related products
