LQ-SL

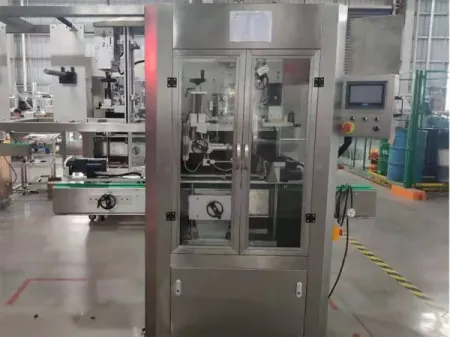

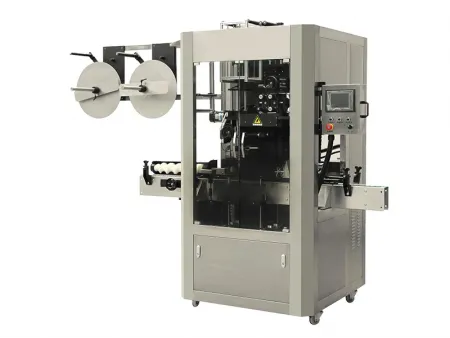

Industrial labeling machine for applying sleeve shrink labels on bottles and containers

  • Our shrink sleeve labeling machine efficiently applies sleeve labels to bottles and containers, which are then shrunk to fit perfectly. This popular packaging solution is ideal for a variety of bottle shapes and sizes, enhancing both appearance and protection. This shrink sleeve labeling machine enhances packaging efficiency and product presentation, making it a valuable addition to any production line looking for reliable and precise labeling solutions.

    Components
    Specifications
    Sleeve Labeling Machine Model LQ-SL-100M LQ-SL-200M
    Speed About 6000 bottles/hour (depending on bottle size) About 12000 bottles/hour (depending on bottle size)
    Machine Size (L×W×H) 2100mm×850mm×2000mm 2100mm×850mm×2000mm
    Weight 600kgs 600kgs
    Powder Supply 220V, 50Hz, 1 Ph 220V, 50Hz, 1 Ph
    Machine Power 1.5kW 1.5kW

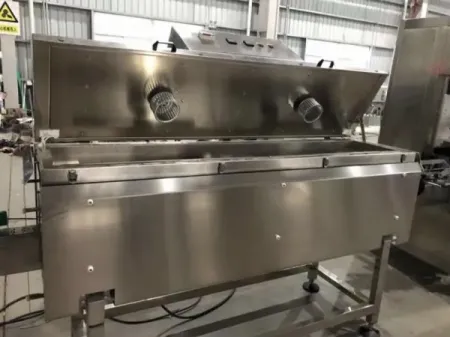

    Steam Shrink Tunnel Length 2m 2m
    Conveyor Speed 0-35m/min 0-35m/min
    Steam Pressure Max. 0.6Mpa Max. 0.6Mpa
    Steam Volume 35-50kg/h 35-50kg/h
    Machine Size L2000×W400×H1500mm L2000×W400×H1500mm
    Weight 230kg 230kg
    Shrink Labels Materials PVC, PET, OPS PVC, PET, OPS
    Thickness 0.035-0.13mm 0.035-0.13mm
    Label Height 30-250mm 30-250mm
    Applicable Bottles Height Customizable as milk powder can Customizable as milk powder can
    Material Glass, metal, plastic Glass, metal, plastic
    Shapes Round, square, flat, curved cup-shaped bottles Round, square, flat, curved cup-shaped bottles
    Features

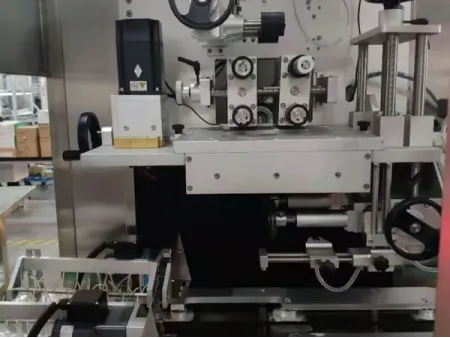

    • This labeling machine has a special cutter head designed to work without needing replacements or manual adjustments. This means less downtime and more consistent production
    • The label feeder is at a convenient height, making it easy to load labels. It automatically detects and positions labels using a computer-controlled system, so changing labels is quick and ensures they are placed correctly every time
    • The labeling machine feeds labels at a stable speed of up to 90 meters per minute. This consistent speed means that every label is the same length and applied accurately, making your products look professional
    • Equipped with a motor-driven cutter, this machine cuts labels cleanly and quickly. The cuts are so smooth and precise, down to 1mm, enhancing the look of your shrink sleeves.
    • Multiple emergency-stop buttons are located along the labeling system. These can be used to quickly stop the labeling device in case of an issue, keeping the operation safe and under control
