Automatic Side Sealing Shrink Wrapping Machine

Request a Quote

View All: http://upg-printpacking.com/2-3-2-automatic-side-sealing-shrink-wrapping-machine.html

LQ-BTH-550 / LQ-BM-500L

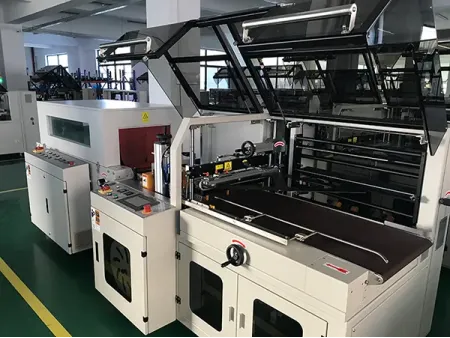

Shrink packaging machine combining shrink tunnel and high speed side sealer

Our automatic side sealing shrink wrapping solution offers advanced packaging technology for a variety of products. With an imported PLC for automatic program control, this shrink wrapping machine ensures easy operation, safety, and effective alarm functions to prevent incorrect packaging. The horizontal and vertical photoelectric detection systems make it simple to switch between different product sizes, allowing seamless integration with production lines and eliminating the need for additional operators.

Main Components

Specifications

Model	LQ-BTH-550	BM-500L
Max. Package Size	L: No limited (W H)≤550mm H≤250mm	L:No limited×(W)450mm×(H)250mm
Max. Sealing Size	L: No limited (W H)≤550mm	(L)1500×(W)500×(H)300mm
Packaging Speed	1-30 packs/min	0-30m/min
Power Suppy	220V/50Hz 3kW	380V/50Hz 16kW
Air Pressure	5.5kg/cm³	/
Weight	650kg	470kg
Overall Dimensions	(L)2200×(W)1270×(H)1300mm	(L)1800×(W)1100×(H)1300mm

Features

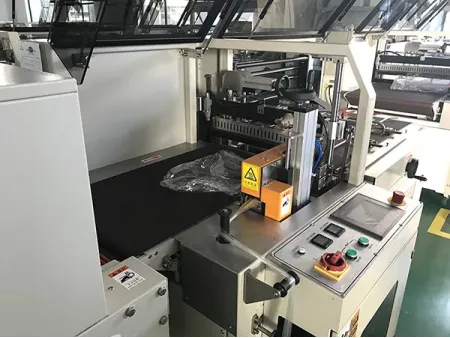

The side blade provides continuous sealing, accommodating products of any length, which is ideal for varied product sizes
You can adjust the sealing lines to fit the product’s height, ensuring a perfect seal every time, no matter the height of the items

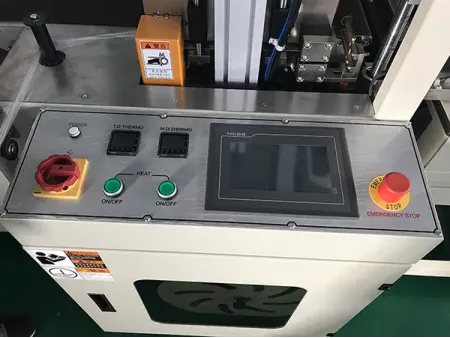

Equipped with an OMRON PLC controller and a touch screen, managing settings is simple and intuitive, making operation easier
The sealing knife, made from aluminum and coated with DuPont Teflon, prevents sticking and withstands high temperatures, ensuring clean and reliable cuts without the risk of pollution
An automatic film feeding and punching device removes air, resulting in tight, smooth packaging without bubbles or wrinkles
Imported photoelectric sensors from USA Banner handle both horizontal and vertical detection, perfect for sealing thin and small items with precision
The film-guide system and feeding conveyor platform can be manually adjusted to fit different widths and heights, simply by rotating a hand wheel, making it easy to switch between product sizes without needing to change molds.
The tunnel features advanced circulation blowing from the bottom, with adjustable direction and volume controlled by a double frequency inverter, ensuring uniform heat distribution for consistent shrink wrapping.
