GP4900

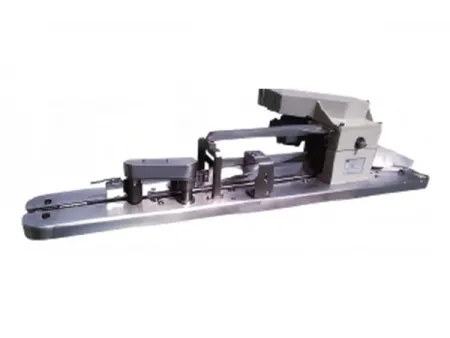

Bag-top fold-over device for folding woven bags or laminated bags prior to sewing
This belt-type folding device prepares the bag mouth before sewing by folding the upper edge into a clean, uniform shape. Once the fold is formed, downstream sewing systems can create a stronger and more secure closure. This greatly reduces issues such as bag leakage, loose stitching, or breakage during handling and transport. It is a reliable front-end component widely used on packaging lines in grain processing, chemicals, fertilizers, animal feed, and other industries where consistent sealing quality is essential.
Applicable Bag Types
Woven bags
Paper–plastic laminated bags
Technical Specifications
| Machine main material | Carbon steel or stainless steel (optional based on customer requirement) |
| Folding width | 35–50mm |
| Bag feeding speed | 5–12m/min |
| Applicable bag thickness | 4–6 layers of woven bags |
| Power supply | 380V/50Hz |
| Motor brand | SEW, NORD, Mitsubishi (customizable) |
| Motor power | 0.18kW / 0.2kW / 0.25kW |
| Machine weight | 32kg |
| Machine dimensions (L×W×H) | 710×240×370mm |
Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
