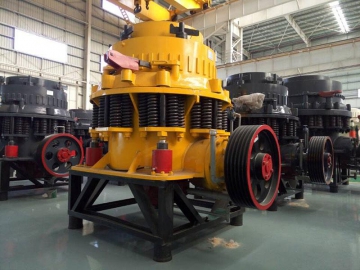

Spring Cone Rock Crusher

Request a Quote

View All: http://hz-mineralprocessing.com/2-1-3-spring-cone-crusher.html

Application
The spring cone rock crusher is specially designed for the crushing of ore and rock with medium hardness, and can be widely used in metallurgy, sand, construction, hydropower, transportation, chemical, and building material applications.

Applicable materials
Limestone, granite, marble, basalt, iron ore, pebbles, shale, bluestone, coal, cobbles, construction waste, etc.

Operation Principle

Main Technical Parameters

Model	Crushing cone bottom diameter (mm)	Max feeding size (mm)	Adjustment range of outlet (mm)	Handling capacity(t/h)	Motor power (kW)	Eccentric shaft speed (r/min)	Weight (t)	Overall dimension (L×W×H) (mm)
PYB600	Φ600	75	12-15	20-40	8P-30	356	5	2234×1370×1675
PYD600	Φ600	35	3-13	12-23	8P-30	356	5.5	2234×1370×1675
PYB900	Φ900	115	15-50	50-90	8P-55	333	11.2	2692×1640×2350
PYZ900	Φ900	60	5-20	20-65	8P-55	333	11.2	2692×1640×2350
PYD900	Φ900	50	3-13	15-50	8P-55	333	11.3	2692×1640×2350
PYB1200	Φ1200	145	20-50	110-168	8P-110	300	24.7	2790×1878×2844
PYZ1200	Φ1200	100	8-25	42-135	8P-110	300	25	2790×1878×2844
PYD1200	Φ1200	50	3-15	18-105	8P-110	300	25.3	2790×1878×2844
PYB1750	Φ1750	215	25-50	280-480	8P-160	245	50.3	3910×2894×3809
PYZ1750	Φ1750	185	10-30	115-320	8P-160	245	50.3	3910×2894×3809
PYD1750	Φ1750	85	5-13	75-230	8P-160	245	50.2	3910×2894×3809
PYB2200	Φ2200	300	30-60	590-1000	8P- (260-280)	220	80	4622×3302×4470
PYZ2200	Φ2200	230	10-30	200-580	8P- (260-280)	220	80	4622×3302×4470
PYD2200	Φ2200	100	5-15	120-340	8P- (260-280)	220	81.4	4622×3302×4470

Features

Pads: adjust the gnawing gap and tangent point of gear by adding or subtracting pads.
Cavity shape: materials between two cones are easily crushed by extrusion, bending and shearing, thus reducing power consumption.
High productivity, and the product has cubic shape, uniform size.
Overload protection with spring safety system: will not damage the machine when the metal foreign bodies pass through the crushing cavity, so as to prolong the service life of the equipment.
