Hybrid Adapter
Request a Quote
Specification
- Insertion Loss: <0.20dB, 2.5mm sleeve/ 1.25mm sleeve;
≤0 .5dB, 1.25mm/2.5mm sleeve - Durability: <0.20 dB typical change, 1000 matings
- Operating Temperature: -40 to 85°C
- CATV
- Telecommunication networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Low insertion loss and back reflection loss
- High precision alignment
- Choice of housing shape and sleeve material
- Compact design
- Nickel plated brass body
LC-FC SMSX Metal adapter
SC-FC Adapter
| PN | Description |
| 121-0201-101 | LC-FC SMSX Metal adapter |
| 121-0302-101 | FC-SC SMDX Metal adapter |
| 121-0307-102 | FC-SC MMSX Metal adapter |
| 121-0801-101 | FC-SC APC Type SMSX Metal adapter |
LC-ST Adapter
| PN | Description |
| 121-2101-102 | LC-ST SMSX Metal adapter |
| 121-2101-107 | LC-ST MMSX Metal adapter |

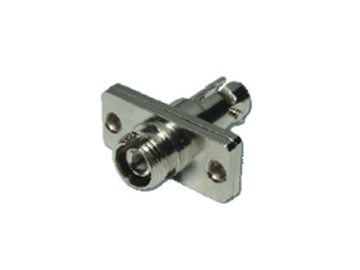

FC-ST Adapter
| PN | Description |
| 121-0401-103 | FC-ST SMSX Metal adapter |
| 121-0402-101 | FC-ST SMDX Metal adapter |
| 121-0407-102 | FC-ST MMSX Metal adapter |
SC-LC Adapter
| PN | Description |
| 121-1101-101 | SC-LC SMSX Metal adapter |
| 121-1107-101 | SC-LC MMSX Metal adapter |
| 121-1108-101 | SC-LC MMDX Metal adapter |

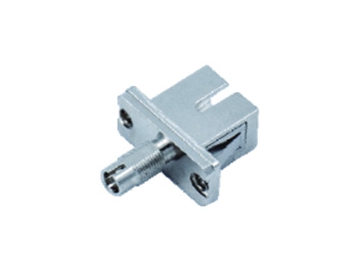

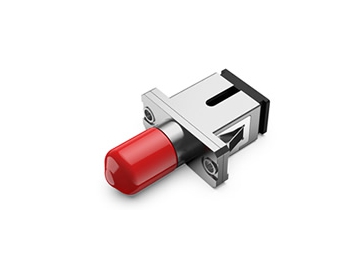

SC-ST SX Adapter
| PN | Description |
| 121-1401-101 | SC-ST SMSX Metal adapter |
| 121-1407-102 | SC-ST MMSX Metal adapter |

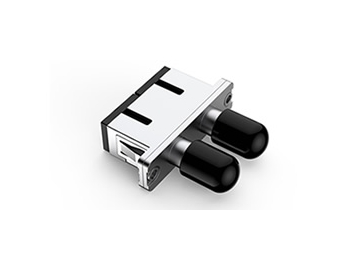

SC-ST DX Adapter
| PN | Description |
| 121-1402-301 | SC-ST SMDX Plastic adapter, Blue |
| 121-1408-602 | SC-ST MMDX Plastic adapter, Beige |
SC-DIN Adapter
| PN | Description |
| 121-1701-101 | SC-DIN SMSX Metal adapter |
