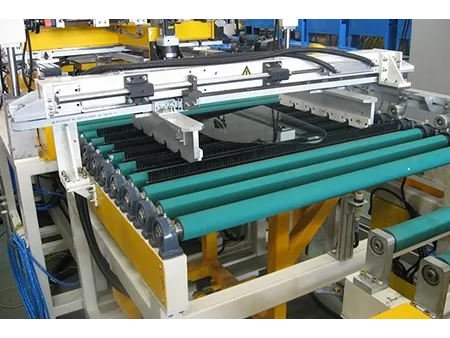

Automatic Glass Loading Conveyor

Request a Quote

Website: http://glassprintmachine-en.com/3-1-automatic-glass-loading-conveyor.html

Glass handling equipment for lifting, moving and tilting glass panels

Automatic glass loading conveyors are designed to streamline the initial stage of flat glass processing lines by transferring panels from storage racks to conveyors without manual lifting. Ideal for handling glass and other rigid flat materials, these systems improve workflow efficiency, reduce labor intensity, and support automation in large-scale production setups. The structure includes a rotation platform, a lifting mechanism, and a conveyor unit. Each component can be configured individually depending on layout and process requirements, while the rotation table's height and dimensions can be customized for smooth integration with the rest of the line.

Technical Specifications

Model	BWLT-1218
Max. glass size (mm)	1400 × 2000
Min. glass size (mm)	400 × 700
Glass thickness range (mm)	1.6 – 10
Power supply	3N 380V, 50Hz, 6 kW

Features

Designed for automatic loading of glass or other rigid flat materials in processing lines
Automatically removes materials from storage racks and places them smoothly on the conveyor
Greatly improves production efficiency and enhances the level of automation
Comprised of a rotation table, automatic lifting system, and transfer unit
Components can be selected individually depending on layout and process requirements
Rotation table dimensions and height can be customized based on customer needs
