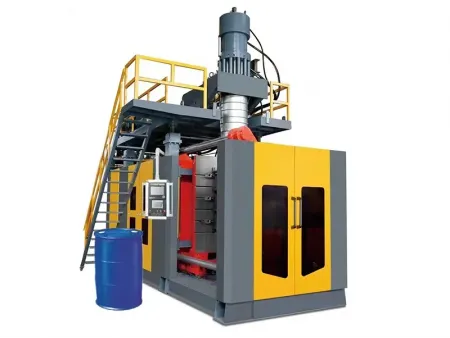

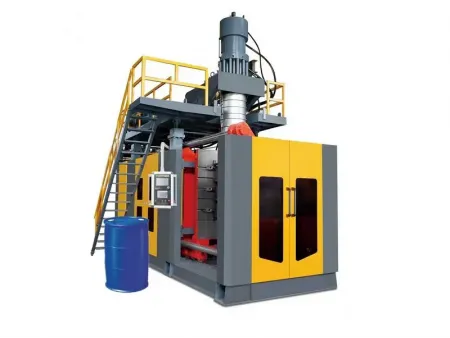

120-1000L Container Extrusion Blow Moulding Machine
The 120-1000L container extrusion blow moulding machine is designed for producing large hollow plastic containers like chemical barrels, water tanks, and automotive fuel tanks. It uses extrusion blow moulding technology to extrude molten plastic and then blow-mould it into the desired shape within a mould, achiecing the production of large containers.
Key Parameters
- Container volume: 120-1000L
- Max. die diameter: 450-700mm
- Mould size (W×H): 900×1200mm, 900×1400mm, 1300×1600mm, 1400×1600mm

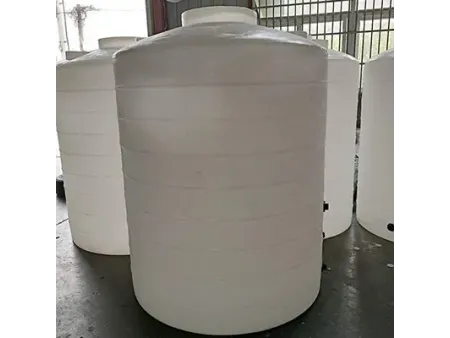

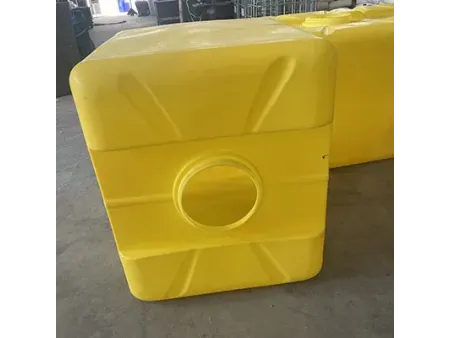

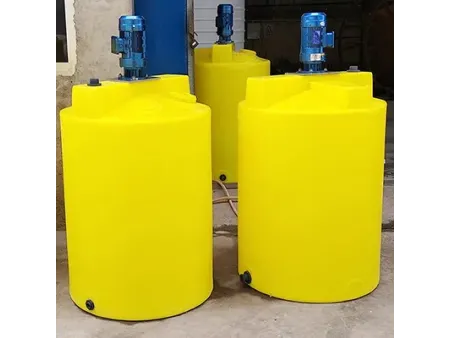

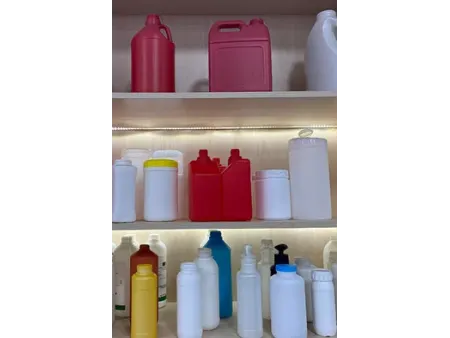

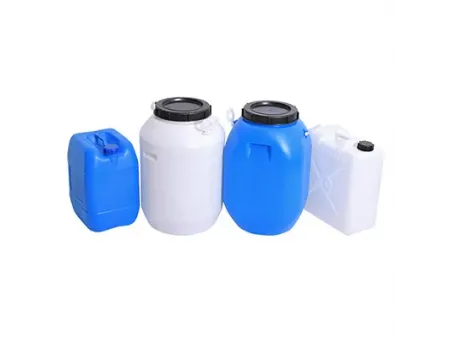

Samples of Plastic Bottles & Containers
Features
The 120-1000L container extrusion blow moulding machine is suitable for producing large-capacity hollow plastic products, such as 200L and larger chemical barrels and water tanks.
Our machines can produce large containers with high strength and thick walls, presenting durability and reliability to meet industrial application demands.
Our container extrusion blow moulding machines are equipped with advanced control systems, enabling automated operation, improving production efficiency, and ensuring product consistency.
With advanced heating and cooling systems, our machines reduce energy consumption, increase production efficiency, and minimize environmental impact.

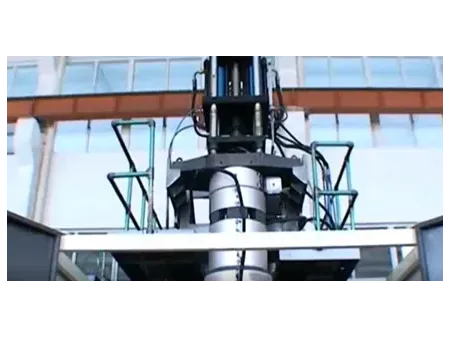

The storage cylinder type die head of our machines is made of high-quality materials, such as 38CrMoAlA, 42CrMov, and 35CrMo, with heat treatment processing, which ensures longer service life.
The machines feature a die head shifting frame that allows for up, down, front, and back adjustments based on blow moulding requirements of customers.
Specifications
| Model | Unit | ||||
| Max. container volume | L | 120 | 160 | 250 | 1000 |
| Dry cycle | pc/h | 360 | 300 | 300 | 250 |
| Screw diameter | mm | 100 | 110 | 120 | 135 |
| Screw L/D ratio | L/D | 25-28 | 25-28 | 28-32 | 28-32 |
| Screw motor power | kW | 45-75 | 75-90 | 90-110 | 110-132 |
| Screw heating power | kW | 5.6×5 | 8×6 | 8×6 | 10×6 |
| Number of heating zone | 4-5 | 6 | 6 | 6 | |
| Extruder output of HDPE | kg/hr | 180-200 | 250-270 | 280-300 | 300-350 |
| Oil pump driver power | kW | 22 | 22 | 30 | 48 |
| Clamping force | kN | 500 | 700 | 900 | 1700 |
| Mould stroke | mm | 520-1400 | 620-1500 | 740-1800 | 1100-2500 |
| Mould size (W×H) | mm | 900×1200 | 900×1400 | 1300×1600 | 1400×1600 |
| Accumulator | L | 12 | 18 | 25 | 36 |
| Max. die diameter | mm | 400 | 500 | 650 | 750 |
| Die heat power | kW | 25 | 30 | 30 | 35 |
| Blowing pressure | MPa | 0.8 | 0.8 | 0.8 | 0.8 |
| Air volume | min | 1.6 | 2 | 3 | 3 |
| Cooling water pressure | MPa | 0.3 | 0.3 | 0.3 | 0.3 |
| Water consumption | L/min | 150 | 180 | 250 | 250 |
| Machine weight | ton | 17 | 22 | 35 | 55 |
| Machine dimensions (L×W×H) | m | 5.6×2.2×4.5 | 5.8×2.6×4.4 | 7.8×2.9×5.4 | 11×6×7 |
