Float Type Water Flow Switch
Request a Quote
The float type water flow switch is used to control the water flow in water heaters and gas boilers. As there is a float element in the switch, the flow switch will turn on and off when the water flow reaches a specific point.

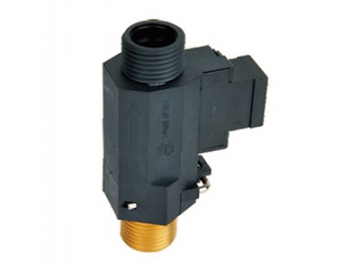

KSL-T3-01 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-02 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-03 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-04 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-06 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | 2.5±0.5L/min |
| Turn off the water flow | ≥1.5L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-10 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | 2.5±0.5L/min |
| Turn off the water flow | ≥1.5L/min |
| Allowable pressure resistance | ≤1.75Mpa |

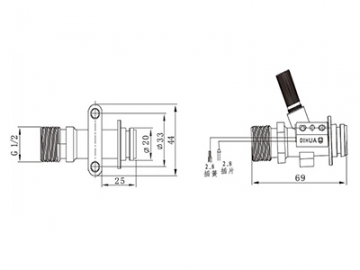

KSL-T3-11 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |

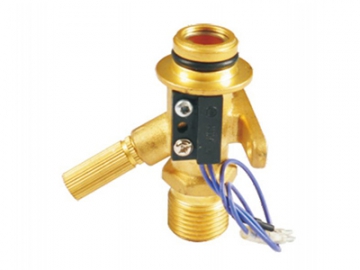

KSL-T3-12 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Installation | Vertical/ horizontal |
| Start the water flow | ≤1.5L/min |
| Turn off the water flow | ≥0.5L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-13 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤1 L/min |
| Turn off the water flow | ≥0.5L/min |
| Allowable pressure resistance | ≤1.75Mpa |
KSL-T3-14 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |

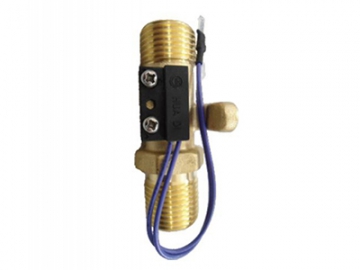

KSL-T3-15 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |

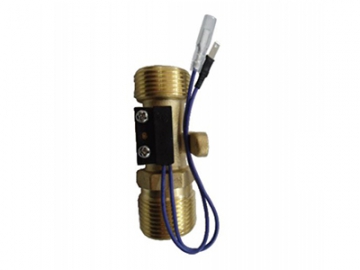

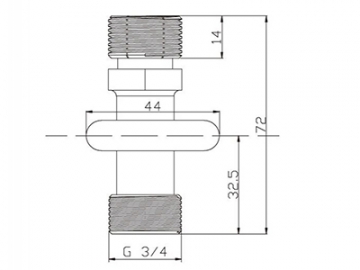

KSL-T3-17 Float Type Water Flow Switch
| Maximum switching voltage | 100V DC |
| Maximum switching current | 0.5A |
| Maximum load current | 1A |
| Maximum load power | 10W |
| Start the water flow | ≤3.0L/min |
| Turn off the water flow | ≥1.0L/min |
| Allowable pressure resistance | ≤1.75Mpa |
