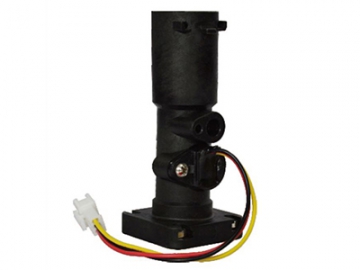

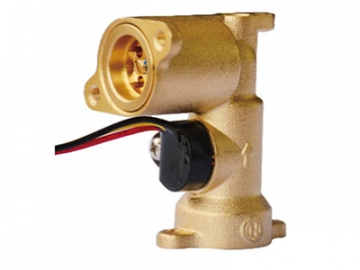

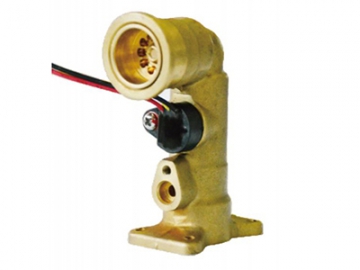

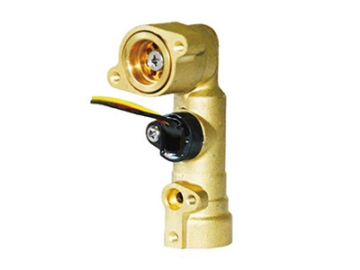

Shape Memory Alloy Boiler Flow Switch
Our shape memory alloy based switches are specially designed to automatically adjust the water flow according to incoming water temperature. They maintain a stable water flow even as water pressure changes. Based on specific water flow rate, these switches automatically output the corresponding signals to the controller for flow control.
| Operating voltage | 5V-12V DC |
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 9 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 6 ± 0.5 L/min.
| Operating voltage | 5V-12V DC |
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |

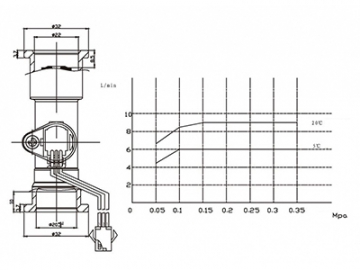

* When the water temperature is 20℃, the water flow remains stable at 9 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 6 ± 0.5 L/min.
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 10.5 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 5.5 ± 0.5 L/min.
| Operating voltage | 5V-12V DC |
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 12.5 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 6.5 ± 0.5 L/min.
| Operating voltage | 5V-12V DC | |
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) | |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) | |
| Start flow | ≤1.5L/min | |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） | |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% | |
| Allow pressure resistance | ≤1.75Mpa | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 10.5 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 6.5 ± 0.5 L/min.
| Operating voltage | 5V-12V DC |
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 15 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 11.5 ± 0.5 L/min.
| Operating voltage | 5V DC |
| Maximum operating current | 25mA(DC 12V)/15mA(DC 5V) |
| Load capacity | ≤15mA DC12≤10mA DC5(RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 10.5 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 5.5 ± 0.5 L/min.
| Operating voltage | 5V DC |
| Maximum operating current | 15mA (DC 5V) |
| Load capacity | ≤10mA DC5 (RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 10.5 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 5.5 ± 0.5 L/min.
| Operating voltage | 5V ~ 12V DC |
| Maximum operating current | 25mA (DC 12V)/ 15mA (DC 5V) |
| Load capacity | ≤15mA DC12 ≤10mA DC5 (RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 10 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 6.5 ± 0.5 L/min.
| Operating voltage | 5V ~ 12V DC |
| Maximum operating current | 25mA (DC 12V)/ 15mA (DC 5V) |
| Load capacity | ≤15mA DC12 ≤10mA DC5 (RPLUS=1kΩ) |
| Start flow | ≤1.5L/min |
| Flow pulse characteristics | f=8.1Q-3（f Frequency HZ, Q Flow L/min） |
| Accuracy(flow rate-pulse output) | 3-17L/min±10% |
| Allow pressure resistance | ≤1.75Mpa |
* When the water temperature is 20℃, the water flow remains stable at 10 ± 0.5 L/min.
* When the water temperature is 5℃, the water flow remains stable at 6.5 ± 0.5 L/min.
