YDF27 Hydraulic Presses

Straight sided hydraulic press with tie rod for sheet metal forming

Nominal capacity 3150kN to 20000kN
Return capacity 450kN to 1500kN
Slide stroke 800mm to 1500mm
Table size (L-R×F-B) 2000×1500mm to 4000×2400mm

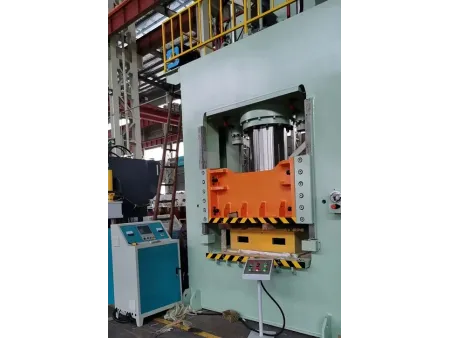

The YDF27 H-frame single-action hydraulic deep drawing press is a straight-sided hydraulic press with a tie-rod frame, designed for precision forming of thin sheet metal. Also known as a hydraulic press for automotive part stamping, this press is ideal for deep drawing applications across industries including automotive, aerospace, appliances, and construction.

With a nominal capacity ranging from 3,150kN to 20,000kN and slide strokes from 800mm to 1,500mm, the H-frame single-action hydraulic deep drawing press offers high forming force, consistent performance, and flexibility for various part sizes. It can be equipped with a hydraulic cushion for automatic demolding and multi-point ejector systems that apply even force, helping to protect finished parts and speed up production.

Optional configurations include a quick die change system, moving worktable, buffer system, auxiliary demolding system, and photoelectric safety devices to enhance efficiency and functionality.

Applications

Thin sheet metal deep drawing: Suitable for car body panels, fenders, covers, and more in the automotive, aerospace, and home appliance industries
Complex curved parts: Ideal for forming complex shapes like automotive doors, engine hoods, and aircraft skins
High-precision parts: Supports forming of components with tight tolerances, such as electronic enclosures and instrument panels
Large sheet metal parts: Perfect for architectural panels, large containers, and oversized components

Specifications

Model		Unit	YDF27-315	YDF27-500	YDF27-630	YDF27-800	YDF27-1000	YDF27-1500	YDF27-2000
Nominal capacity		kN	3150	5000	6300	8000	10000	15000	20000
Return capacity		kN	450	570	640	1000	1000	1200	1500
Max. working pressure		MPa	25	25	25	25	25	25	25
Slide stroke		mm	800	900	1000	1000	1200	1200	1500
Max. opening height (daylight)		mm	1250	1500	1600	1600	1800	1800	2000
Cushion capacity		kN	1250	2000	2500	3150	4000	5000	6000
capacity stroke		mm	300	300	400	400	400	400	400
Slide speed	Descent	mm/s	150	180	180	180	180	200	200
	Pressing	mm/s	6-14	7-15	8-16	9-20	9-20	8-16	8-16
	Return	mm/s	100	120	120	150	150	120	120
Table size	Left-Right	mm	2000	2000	2500	3000	3000	3600	4000
Table size	Front-Back	mm	1500	1600	1600	2000	2000	2000	2400
Cushion size	Left-Right	mm	1500	1500	1800	2250	2250	2700	3200
Cushion size	Front-Back	mm	900	900	900	1350	1350	1350	1800
Main motor power		kW	22	44	60	90	1 10	135	180

Note: Special specifications can be custom-designed and manufactured according to your requirements.

Download

Our product brochure

The h-frame hydraulic deep drawing press offers the strength, accuracy, and flexibility you need for high-performance metal forming. Contact us to find a solution tailored to your production goals.
