4-Column Hydraulic Deep Drawing Press

Request a Quote

View All: http://metalforming-en.com/2-6-4-column-hydraulic-deep-drawing-press.html

YD25 Hydraulic Presses

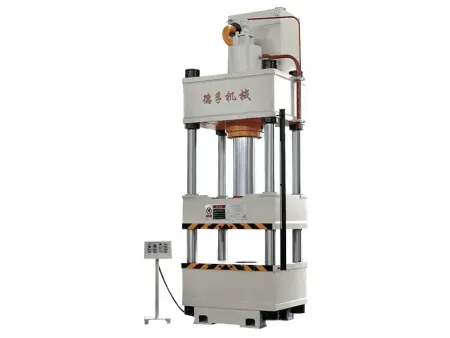

4-post hydraulic press with floating guide rail for making aluminum/stainless steel gas cylinder

Nominal capacity 280kN to 2000kN
Return capacity 40kN to 100kN
Max. slide stroke 500mm to 600mm
Table size (L-R×F-B) 400×450mm to 900×1000mm

The YD25 4-column hydraulic deep drawing press is a fast-acting deep drawing press with a floating guide rail structure, specifically developed for multi-step forming of aluminum and stainless steel gas cylinders. Its compact, integrated design combines the frame, oil tank, and electrical control system into one unit, ensuring easy installation and space-saving operation.

With a nominal capacity from 280kN to 2,000kN and a maximum slide stroke of 500mm to 600mm, the 4-column hydraulic deep drawing press provides reliable, efficient performance for deep drawing applications that require both speed and precision.

Applications

Automotive parts: doors, hoods, suspension arms, crossbeams
Appliance parts: refrigerator, washing machine, and air conditioner housings, brackets, and bases
Aerospace parts: fuselage skins, ribs, beams, and engine casings
Construction components: metal roofing, wall panels, steel connectors, door and window frames

Key Features

Low energy consumption, high efficiency, and modern design
Equipped with safety protection, automatic counting, and two-stage speed control on the moving beam
Rapid no-load descent, slow approach during working phase, and smooth deep drawing operation
Main and blank-holder cylinders include upper and lower limit protection with simple, user-friendly stroke adjustments

Specifications

Model		Unit	YD25-300	YD25-280	YD25-230	YD25-160	YD25-120	YD25-100	YD25-70	YD25-40
Nominal capacity of main cylinder		kN	2000	1800	1500	1000	800	650	450	280
Max. working pressure		MPa	21	21	21	20	21	21	20	21
Return capacity		kN	100	100	128	50	70	65	50	40
Nominal capacity of blank holder cylinder		kN	1000	80	800	600	400	350	250	120
Working Pressure of blank holder cylinder		MPa	21	600	21	23.5	20	23	21	24
Nominal capacity of return cylinder		kN	20	21	20	20	20	15	15	15
Max. stroke of slide		mm	600	300	560	500	500	500	500	500
Max. stroke of piston in blank holder cylinder		mm	300	20	300	260	250	230	230	230
Max. stroke of return cylinder		mm	220	220	265	200	200	180	200	180
Distance from slide to worktable	Max.	mm	1130	1000	960	850	850	850	800	800
Distance from slide to worktable	Min.	mm	530	400	400	350	350	850	300	300
Slide speed	Descent	mm/s	190	200	240	380	355	350	280	280
	Pressing	mm/s	10-32	16-23	14-34	15-31	14-31	18-38	18-28	12-25
	Return	mm/s	185	260	260	380	350	380	280	280
Blank holder cylinder speed (upward)		mm/s	90	100	138	87	125	150	85	85
Return cylinder speed		mm/s	125	90	100	65	66	65	66	65
Motor power		kW	37	850	30	15	11	11	7.5	7.5
Table size	Left-Right	mm	900	30	850	700	650	620	450	400
Table size	Front-Back	mm	1000	990	900	880	750	650	500	450
Machine Dimensions	Left-Right	mm	2250	2200	2080	1950	1850	1800	1460	1400
	Front-Back	mm	1710	1610	1500	1500	1300	1250	1000	950
	Height	mm	3890	3890	3500	3150	3000	3000	3000	2800

Note: Special specifications can be custom-designed and manufactured according to your requirements.

Download

Our product brochure

The YD25 4-column hydraulic deep drawing press is built for precision and speed in high-performance forming of gas cylinders and large metal components. Contact us to discuss custom configurations that meet your production goals.
