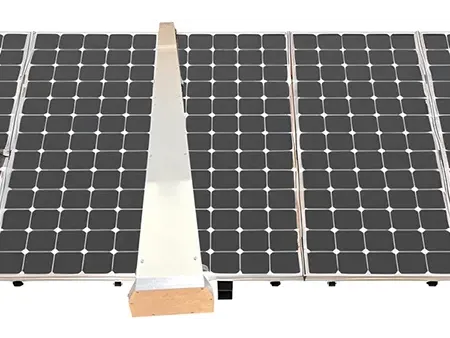

Semi-Automatic Solar Panel Cleaning Robot

Semi-Automatic Solar Panel Cleaning Robot
Semi-Automatic Solar Panel Cleaning Robot
Semi-Automatic Solar Panel Cleaning Robot
Request a Quote

Robotic solar panel cleaning machine for cleaning dust, dirt, bird droppings and other pollutants on solar panels

The semi-automatic solar panel cleaning robot supports both wet and dry cleaning, enabling efficient row-by-row automated operation. Compared with handheld cleaners, it delivers significantly higher cleaning speed and requires minimal manual intervention, making it ideal for semi-automated maintenance of large-scale solar farms.

Specifically designed for utility-scale PV plants, the semi-automatic solar panel cleaning robot effectively removes dust, bird droppings, rust, and other surface contaminants. By keeping panels clean, it helps maintain optimal energy output, reduces efficiency losses, and extends the service life of solar modules.

Specifications
Model JNX-B2-Single Panel JNX-B2-Double Panel
Applicable solar panel Supporting single PV panel cleaning Supporting double PV panel cleaning
Machine dimensions (W×H) 350×250mm 350×250mm
Machine length Customized based on PV panel length Customized based on PV panel length
Machine weight 40-45kg 85-90kg
Travel speed 10-22m/min 10-22m/min
Motor power 100W 200W
Ion battery 24V/10Ah 24V/20Ah
Working time 3-5 hours 3-5 hours
Water consumption 270L/h 330L/h
Working temperature -10℃ (not freezing) to 50℃ -10℃ (not freezing) to 50℃
Inclination angle 0° to 45° 0° to 45°
Cleaning method Wet/dry cleaning (dual mode) Wet/dry cleaning (dual mode)
Control method Smartphone APP, remote control, wireless radio control Smartphone APP, remote control, wireless radio control
Key Features
  • Efficient Cleaning: Supports both dry and wet cleaning for adaptable operation, thoroughly removing dust and grime to ensure maximum light exposure and boost power generation efficiency by 8%-30%.
  • Smart Control: Dual control via mobile app and remote controller. Supports autonomous scheduling, remote operation, individual/group device management, real-time tracking, and cloud-based data monitoring.
  • Safety & Reliability: Equipped with sensors for obstacle avoidance, anti-fall protection, self-diagnostics, and fault alerts. Weather-resistant design ensures stable operation in wind, rain, snow, and other harsh conditions.

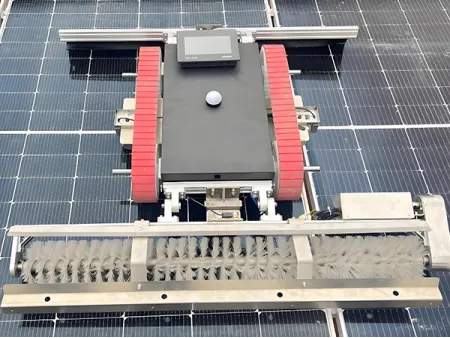

  • All-Terrain Operation: Track-based models enable remote-controlled forward/backward movement and turning, adapting to complex environments for comprehensive cleaning without blind spots.
Customization Services

Technical team provides tailored designs based on array specifications (e.g., panel width, height, inclination angle, mounting structure) to ensure perfect compatibility with your PV plant layout.
