Robotic solar panel cleaning machine with PV robot shuttle system for automatic cleaning of PV panels

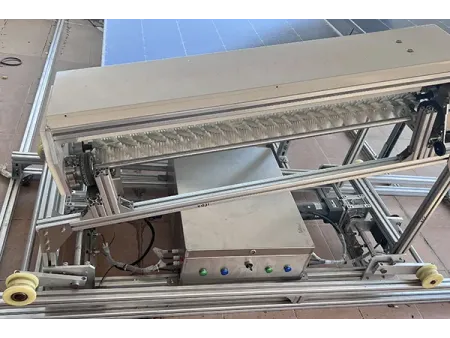

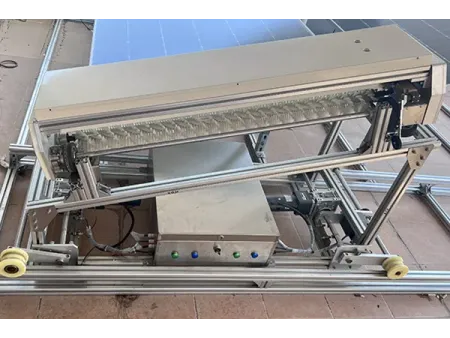

Automatic solar panel cleaning robot combines rail-guided mobility, material handling mechanisms, control systems, and multiple safety protection devices to deliver reliable performance. It operates on fixed tracks to automatically transport and precisely position PV panels, enabled by driven actuators and automated control systems.

Automatic solar panel cleaning robot is widely used in the construction and maintenance of solar power plants, especially in large-scale and distributed PV facilities. Beyond the solar industry, it can also be adapted for other fields that require the handling, transport, or installation of large panels, such as in construction and transportation industries.

Specifications
Model JNX-G2
Applicable solar panel Supporting single, double and multiple PV panels cleaning
Obstacle crossing ability Capable of crossing obstacle of up to 20mm in height
Travel speed 12-20m/min (adjustable)
Motor power Three options of 100W, 200W and 300W to meet various application needs
Machine weight 30-50kg (lightweight body design)
Machine dimensions (L×W×H) 4556×365×280mm (customizable)
Water consumption 270-330L/h (under pressure of 0.3MPa)
Battery & working time Battery capacity: 24V 20AH (optional)
Charging power: 60W
Working time per charge: 2-4 hours
Brush service life 2-3 years
Working temperature -10℃ (not freezing) to 50℃
Cleaning method Wet/dry cleaning (cleaning way: one time cleaning/repeated cleaning/rubbing/timed cleaning)
Communication & control Integrating wireless remote control, WiFi module, 4G module, robot management control system
