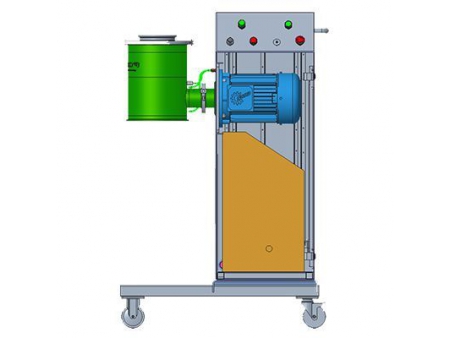

TQZ series conical mill is configured with vacuum conveying system that transfers dried particles from the fluid-bed dryer bowl to the buffer tank. By opening the valve of the buffer tank, the conical mill performs uniform size reduction of particles via rotor and screen, providing ideal and reliable size reduction solution for industry sectors such as pharmaceutical, food, chemical, and others.

Samples
Features
  • The rotor is available in several shapes, providing processing options to adapt to material characteristics;
  • Screens with different shapes and sizes allows user to well control of uniform particle size;
  • Stepless speed control with frequency conversion, accommodating different process needs;
  • Explosion-resistant design is complaint with EN ISO 80079-36 and EN ISO 80079-37 standards, the conical mill is ATEX certified;
  • Suitable for highly active substances, containment level of OEB4;
  • Through-the-wall installation, high rate of space utilization;
  • Temperature control module can be optionally configured, suitable for handling heat-sensitive materials;
Technical Specifications
  • Model:
    TQZ50
  • Buffer tank volume (L): 50
  • Lift power (kW): 1.5
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 2.2
  • Mill capacity (kg/h): 200
  • Weight (kg): 550
  • Model:
    TQZ100
  • Buffer tank volume (L): 100
  • Lift power (kW): 1.5
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 2.2
  • Mill capacity (kg/h): 200
  • Weight (kg): 630
  • Model:
    TQZ150
  • Buffer tank volume (L): 150
  • Lift power (kW): 2.2
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 4
  • Mill capacity (kg/h): 500
  • Weight (kg): 700
  • Model:
    TQZ300
  • Buffer tank volume (L): 300
  • Lift power (kW): 2.2
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 4
  • Mill capacity (kg/h): 500
  • Weight (kg): 750
  • Model:
    TQZ500
  • Buffer tank volume (L): 500
  • Lift power (kW): 3
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 5.5
  • Mill capacity (kg/h): 1000
  • Weight (kg): 900
  • Model:
    TQZ800
  • Buffer tank volume (L): 800
  • Lift power (kW): 3
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 5.5
  • Mill capacity (kg/h): 1000
  • Weight (kg): 1000
  • Model:
    TQZ1200
  • Buffer tank volume (L): 1200
  • Lift power (kW): 3
  • Rotor speed (r/min): 150-1500
  • Rotor power (kW): 5.5
  • Mill capacity (kg/h): 1000
  • Weight (kg): 1150
Type
TQZ50
TQZ100
TQZ150
TQZ300
TQZ500
TQZ800
TQZ1200
Buffer tank volume (L) 50 100 150 300 500 800 1200
Lift power (kW) 1.5 1.5 2.2 2.2 3 3 3
Rotor speed (r/min) 150-1500
Rotor power (kW) 2.2 2.2 4 4 5.5 5.5 5.5
Mill capacity (kg/h) 200 200 500 500 1000 1000 1000
Weight (kg) 550 630 700 750 900 1000 1150
