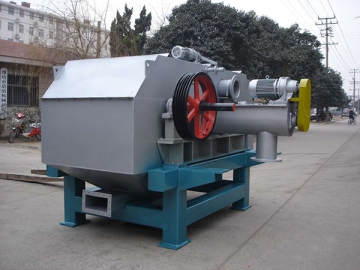

High Speed Washer / Thickener
Request a Quote
View All: http://paper-equipment.com
Capacity: 40-200T/D
Our ZNGX series high speed washer and thickener is specially designed for washing and thickening purposes in the production of wastepaper recycled pulp, including deinked pulp. It is the most up to date model of wastepaper pulp washing and thickening machines.
This pulp washer comes with an extremely high removal efficiency of micro impurities in the pulp, such as ink particles, and fillers. It is ideal for washing and thickening recycled pulp of waste newspaper, account books, magazines and more.
Technical Parameters of the High Speed WasherModel | ||||
Inlet consistency | 0.5-1.5% | |||
Outlet consistency | 10-15% | |||
Capacity (T/D) | 40-50 | 80-100 | 130-150 | 180-200 |
Inlet diameter (mm) | Ø150 | Ø200 | Ø 250 | Ø 300 |
Outlet diameter (mm) | 380×380 | 420×420 | ||
Screen width (mm) | 547 | 1067 | 1499 | 1930 |
Motor power | YCT250-4A/15KW | YCT280-4A/30KW | YCT315-4A/37KW | YCT315-4A/45KW |
