Vibrating Screen (High Frequency)
Request a Quote
View All: http://paper-equipment.com
Capacity: 2-120 T/D

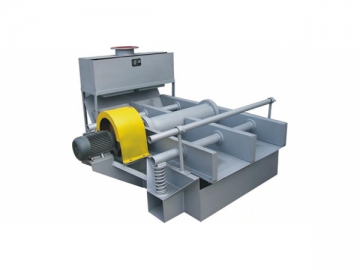

Shown here is the ZSK series high frequency vibrating screen. The high frequency screen is mainly used for coarse screening of paper pulps. It can screen, sort, and filter knots, paper pulps, dry lime, fillers, plastic film and non-digested material in the coarse pulp.
The vibrating pulp screen features a fully closed structure and is designed with a pulp stabilizing box and stock tank. It comes with a compact structure, small floor space, and a number of other advantages.
Technical Parameters of the Vibrating ScreenModel | |||||
Capacity (T/D) | 2-3 | 5-10 | 20-40 | 40-80 | 60-120 |
Screening area (m2) | 0.3 | 0.6 | 0.9 | 1.8 | 3 |
Screen plate size (mm) | 1300×380 | 1750×500 | 2100×580 | 2100×1080 | 2100×1610 |
Screen bores diameter (mm) | 2, 2.5, 3, 4, 5, 6, 8, 10, 12 | ||||
Vibration frequency (times/min) | 1440 | ||||
Amplitude (mm) | 4-5 | ||||
Inlet consistency (%) | 1-1.5 | ||||
Outlet consistency (%) | 0.8-1.2 | ||||
Motor power (Kw) | Y90S-4/1.1 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 | Y132S-4/5.5 |
