Pharmaceutical Machinery

Liquid Dosage

AGL2/2-10Z

Liquid filling machine for ampoules
  • 30 to 50 Ampoules Per Minute
  • 2 to 10 ml Filling Range

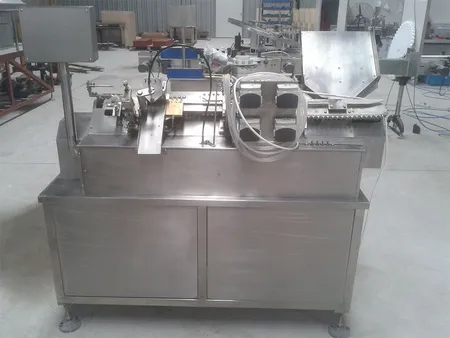

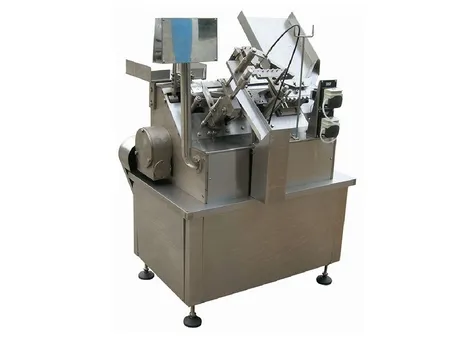

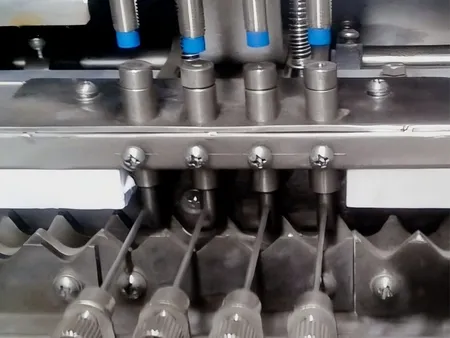

This upgraded ampoule filling and sealing machine is designed with advanced features for improved performance and durability. It incorporates a new imported linear guide rail system, ensuring smoother and more reliable gear plate transmission for extended longevity. The liquid filling machine includes 8 filling heads, meeting the requirements for front and rear nitrogen flushing. Equipped with variable frequency drive, a peristaltic pump, and a PLC touchscreen control system, it enables precise control and monitoring of machine speed, filling volume, and production count. It is widely used for filling and sealing substances in pharmaceuticals, health supplements, cosmetics, and research institutions.

Specifications
Model AGL2/2-10Z
Production Capacity 30-50 ampoules/min
Filling Range 2-10ml
Fuel Consumption Coal gas: 1m³/h LPG: 0.6kg/h

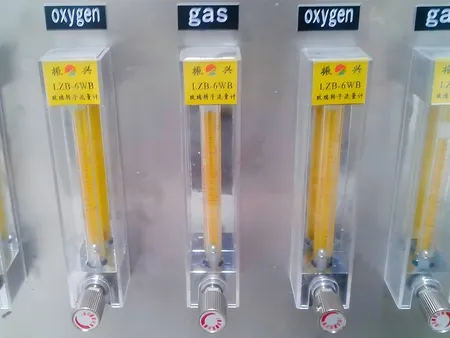

Oxygen Consumption 4kg/h
Motor power 0.37kW
Power supply 220V 50Hz
Machine Dimensions (L×W×H) 1100×720×1400mm
Machine Weight 250kg
Nitrogen (inert gas) flushing mechanism available in both pre and post-flushing
