Roller Type High Speed Blister Packing Machine Manufacturer

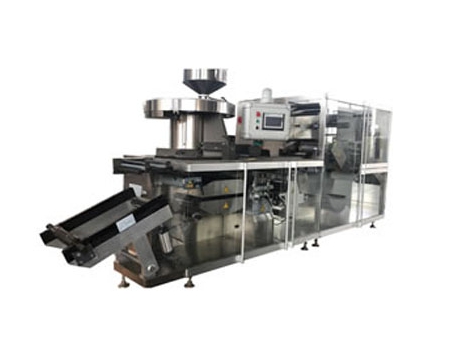

Roller Type High Speed Blister Packing Machine

Request a Quote

View All: http://pharmacy-machines.com/2-4-automatic-blister-packaging-machine.html

DPH Series

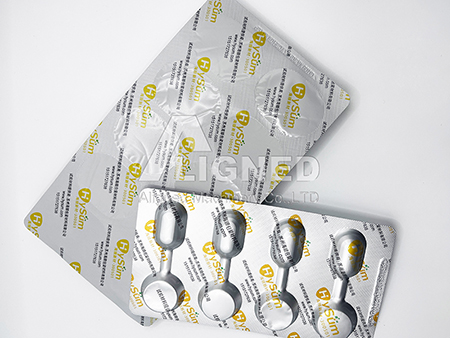

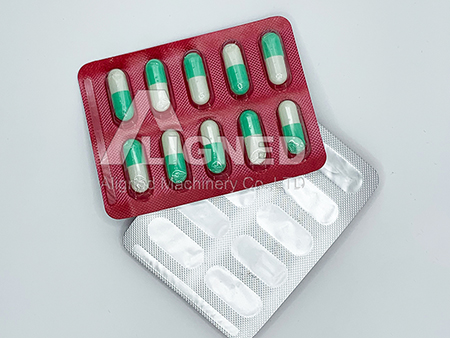

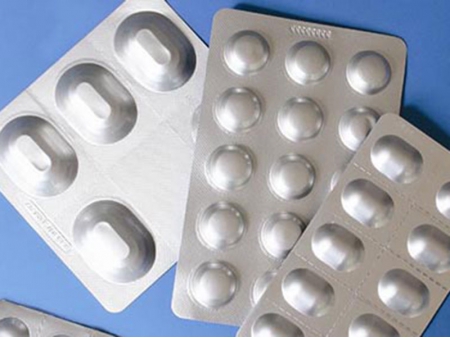

Automatic blister packaging machine is constructed for the ALU/PVC and ALU/ALU packaging of a variety of pharmaceutical and foodstuff products, such as tablets, capsules, pellets, candies, as well as other industrial objects.

Roller Type High Speed Blister Packing Machine Introduction

Technical Specifications

Terms	DPH-320H	DPH-260H
Operation speed	ALU/PVC 60-200Times/Min
	ALU/ALU 80Times/Min
Travel range	100-280mm
Max. forming area	320×280mm	260*280
Max. forming depth	ALU/ALU 9mm
	ALU/PVC 12mm
Main motor power	3KW	2.2KW
Power supply	3P 5Line 380V 50HZ 18.9KW	3P 5Line 380V 50HZ 15.5KW
Air pressure	0.1-0.15MPa
Air consumption	≥0.5 m3/min
Water consumption	1.5P with 60L/h
Dimension	4860X1480X1750mm	4860X1400X1750mm
Weight	4500Kg	4000

Features

The heating plate at forming station is opened and closed automatically, and the machine will delay to start until the forming material reaches set temperature, thus reducing the waste of material;
Pneumatic cushion heating mechanism, the upper sealing molds (web plate) is driven by a pneumatic cylinder to rise up when power off, avoiding the blister package deformation caused by heat radiation during the machine stop;

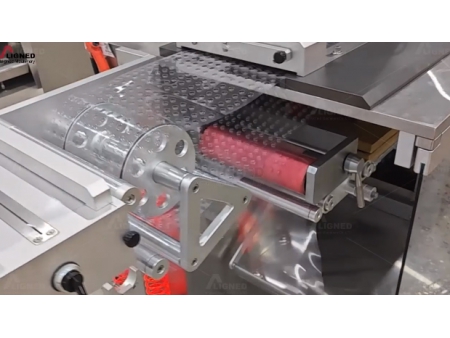

Roll heat sealing mechanism, the linear contact between the heat seal roll and anilox roll achieves higher sealing pressure due to smaller sealing area, providing an excellent sealing efficiency;
Automatic alarm system for broken or run out of Alu foil and PVC film, with emergency stop safety device, enhancing the safety of operator during the operation;
Servo stepper motor is adopted to ensure precise synchronization in running;
Machine oiling is carried out every 10 minutes (can be set accordantly) by oil pump to lubricate and cool the machine, guaranteeing the smooth operation while prolonging the service life;
Protection functions:
1) Machine automatically stops when there is a shortage of Alu foil and PVC film;
2) Alarm will be automatically activated when there is a shortage of packaging products;
3) Machine automatically stops and triggers alarm when air pressure is insufficient;
4) Heating system will be automatically stopped when the any temperature exceeds the limit, protecting the electrical system from being damaged;
