Hot Shrinking Machine

Request a Quote

View All: http://pharm-equipment.com/11-3-hot-shrinking-machine.html

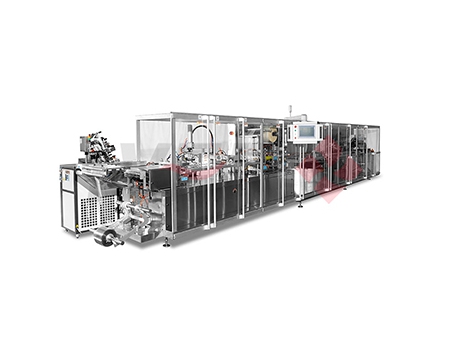

The MT600 hot shrinking machine incorporates flexible conveying line and sleeve type packing. It is extensively used for packing products in various shapes in the food, beverage, pharmaceutical, bottles, chemical, electrical, and many other industries. The hot shrinking packaging can effectively protects goods from moisture.

The hot shrinking equipment features great adaptability, high efficiency and low power consumption. Easy to operate, it enables customers to save on labor cost.

Performance Characteristics

Max. packing: width: 500 mm, height: 300 mm, length: 320 mm
Top speed: 20~30 pack/min, 15~20 bottle/pack (100~500 ml IV solution glass bottle and plastic bottle)
Film type: PE hot shrink film or PVC film (coiling film)
Film specification: width: 500 mm, external diameter: 300 mm, thickness: 0.01-0.08 mm
Conveyor belt: chain driven roller conveyor belt
Material: 304 stainless steel, carbon steel
Air pressure: ≤0.5 Mpa
Power supply: 380 V / 50-60 HZ
Total power: 11 kW
Dimensions: length: 6105 mm, height: 1620 mm, width: 800 mm

As an experienced hot shrinking machine manufacturer and supplier in China, IVEN Pharmatech provides a wide range of products that includes bottle capping machine, fine bottle washing machine, IV solution leak detector, and more.
