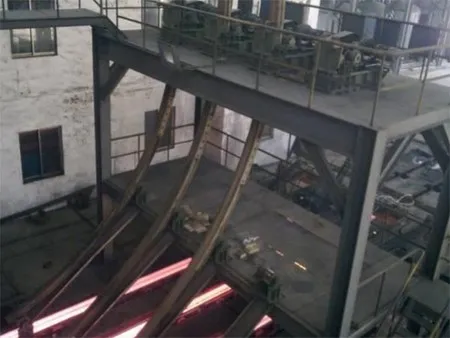

The continuous casting machine is a core part of continuous casting operation. It comprises pouring steel equipment, body equipment, cutting area equipment as well as the hydro-mechatronic dummy bar collecting and conveying equipment. And in the continuous casting process, high-temperature molten steel is continuously cast into billets which have certain interfaces of different shapes and specifications.

R2.5m Continuous Casting Machine
  • Production capacity: 4-25ton/hour
  • Casting arc radius: R2.5m
  • Casting speed: 2.2-3.0m/min
  • Billet length: 6 meters
  • Strand number: 2 strands
  • Applicable steel: 20MnSi, Q215, Q315, 45#, etc.
  • Water cooling for mold: 60ton/hours
  • Electrical power for inline equipment: 80kW
R4m Continuous Casting Machine
  • Production capacity: 20-40ton/hour
  • Casting arc radius: R4m
  • Billet size: 60×60mm, 80×80mm, 100×100mm, 120×120mm, 125×125mm
  • Billet length: 6-12 meters
  • Strand number: 2 strands
  • Available steel: low alloy steel, common steel, etc.
R6m Continuous Casting Machine
  • Casting arc radius: R6m
  • Billet size: 150×150mm
  • Billet length: 6 meters
  • Strand number: 4 strands
  • Dummy bar type: rigid dummy bar
R9m Continuous Casting Machine
  • Production capacity: 60-120ton/hour
  • Casting arc radius: R9m
  • Billet size: 250×250mm, 220×220mm, 200×200mm, 200×500mm
  • Billet length: 6-12 meters
  • Strand number: 3 strands
Operation Processes of the Continuous Casting Machine/CCM

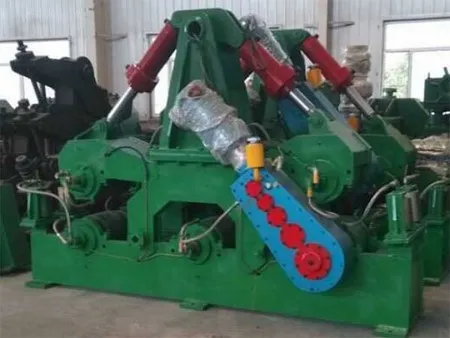

Qualified molten steel→ladle turret (the ladle is equipped with a lid and weighed)→ tundish(it is a ladle protective tube fully sealed with argon.)→ the weighing of the tundish→submerged nozzle→ detection system of crystallizer liquid level→ crystallizer→ electromagnetic stirring →mold oscillation→ secondary cooling control→ secondary cooling of atomized vapor and water → withdrawal and straightening machine→ dummy bar and its storing device→ rollers → flame cutting machine →conveying and tapping rollers→ two-way steel moving machine→ flip cooling bed and hot delivery rollers→ hot delivery, stacking, slow cooling
