Mini Ball Valve
Request a Quote
Features
- Working Pressure: 1000PSI/PN63
- Reduced Port
- Dewaxing/Investment Casting
- Blowout-Proof Stem
- Sanitary Design
- Product Test Standard: PED97/23/EC (CE0036)
- Casting Test Standard: AD2000-W0
- Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
- Inspection Testing: API598, EN12266
Material List
- Part: Material
- O-ring: NBR
- Stem: SUS304
- Bolt: SUS304
- Lever: Aluminum Alloy/CF8
- Body: CF8/CF8M
- Cap: CF8/CF8M
- Ball Seat (a): RPTFE
- Ball: CF8/CF8M
- Ball Seat (b): RPTFE

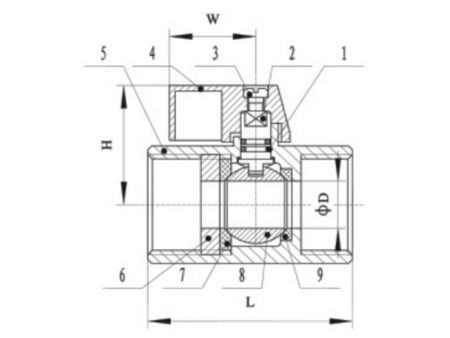

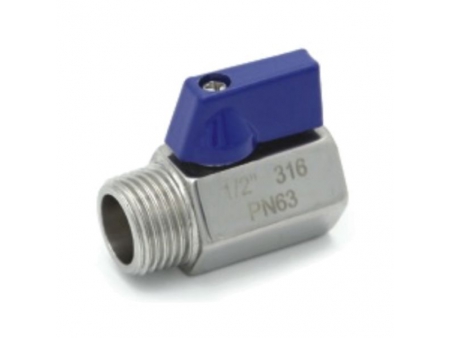

Female x Female Mini Ball Valve
Dimensions (unit: mm)
| Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 7 | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 42 | 42 | 42 | 46 | 54 | 65 |

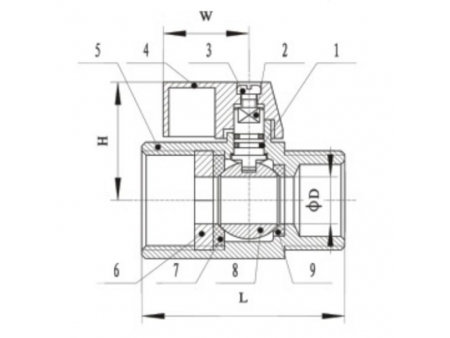

Male x Female Mini Ball Valve
Dimensions (unit: mm)
| Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 7 | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 40 | 40 | 40 | 46 | 54 | 65 |

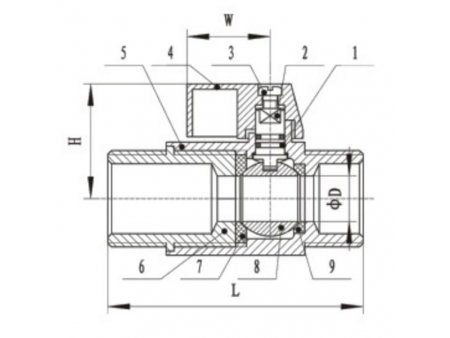

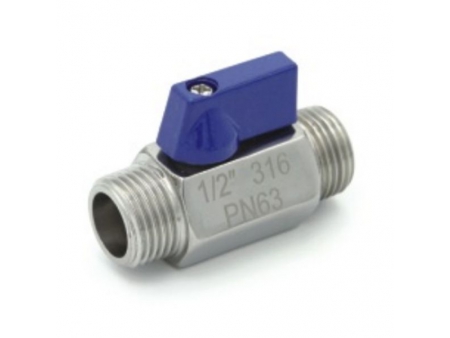

Male x Male Mini Ball Valve
Dimensions (unit: mm)
| Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 7 | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 50 | 50 | 50 | 58 | 71.5 | 83 |

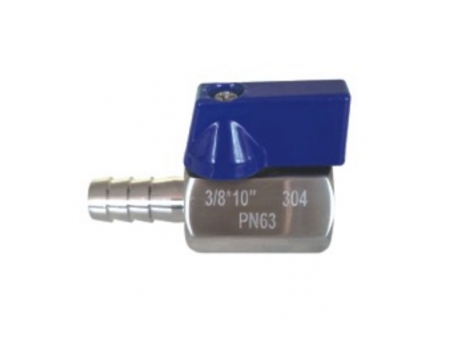

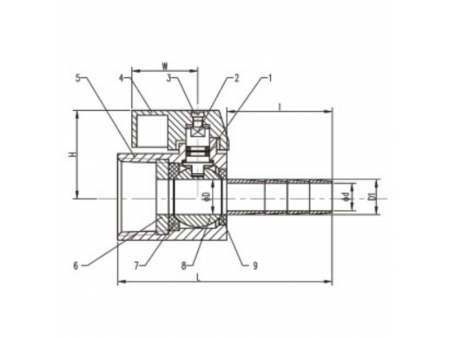

Female x Hose Barb Mini Ball Valve
Dimensions (unit: mm)
| Size | 1/8" 1/4" 3/8" | 1/2 " | |||||
| D | 7 | 7 | 7 | 7 | 9.2 | 9.2 | 9.2 |
| H | 26.5 | 26.5 | 26.5 | 26.5 | 28.3 | 28.3 | 28.3 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 48.5 | 48.5 | 50.5 | 55 | 52 | 58 | 58 |
| d | 5 | 5 | 6.5 | 7 | 5 | 8 | 8 |
| I | 18.5 | 18.5 | 20.5 | 25 | 18.5 | 25 | 25 |
| D1 | Ø7 | Ø8 | Ø10 | Ø12 | Ø8 | Ø10 | Ø12 |

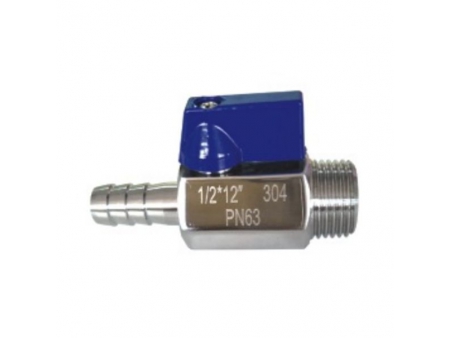

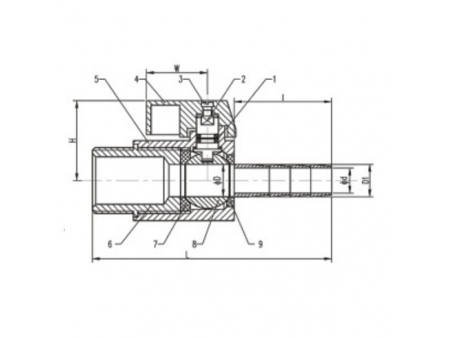

Hose Barb x Male Mini Ball Valve
Dimensions (unit: mm)
| Size | 1/8" 1/4" 3/8" | 1/2 " | |||||
| D | 7 | 7 | 7 | 7 | 9.2 | 9.2 | 9.2 |
| H | 26.5 | 26.5 | 26.5 | 26.5 | 28.3 | 28.3 | 28.3 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 58.5 | 58.5 | 60.5 | 65 | 64.5 | 71 | 71 |
| d | 5 | 5 | 6.5 | 7 | 5 | 8 | 8 |
| I | 18.5 | 18.5 | 20.5 | 25 | 18.5 | 25 | 25 |
| D1 | Ø7 | Ø8 | Ø10 | Ø12 | Ø8 | Ø10 | Ø12 |
The ball valve is commonly employed as fluid shut-off valve in both onshore and offshore petroleum systems and natural gas production facilities. They are also used in fuel gas systems to supply furnaces.
The ball valves are often used in different types of pipeworks including drainage systems, water supply lines and irrigation systems.
The ball valves produced by our company can be made of stainless steel, carbon steel and other materials. For more information, please consult our service personnel.
The metal seated ball valve has a base made of two types of metal, while the soft seated ball valve is made of one type of metal and one type of plastic.
For steam applications, ball valves are most used due to their better sealing properties.
Our company primarily manufactures flow control products using stainless steel, specifically including alloy steel, high-alloy steel, heat-resistant stainless steel, duplex stainless steel, and corrosion-resistant steel, etc.
We manufacture flow control equipment and accessories in accordance with various standards such as GB, ASTM, ASNI, BS, DIN, JIS, etc.!
80% of our industrial valves are exported to the United States, Japan, South Korea, the United Kingdom, Canada, Australia, etc.
As a professional stainless steel casting foundry, we offer precision investment casting, sand casting, and machining services for various industry sectors, in addition to the field of flow control valves.
We provide stainless steel investment casting machining for agricultural casting, automotive investment casting, fluid power casting, marine hardware casting, and medical investment casting.
