EPDM Food Discharge Hose

EPDM Food Discharge Hose
EPDM Food Discharge Hose
EPDM Food Discharge Hose
Request a Quote

The EPDM food discharge hose is specifically crafted to accommodate a wide range of liquid food products, including wine, beer, potable water, fruit juices, milk, and milk by-products. Its features include high resistance to CIP (cleaning in place) solutions, suitability for steam sterilization up to 302°F (150C) for 30 minutes, and applicability to cleaning and sterilization processes in food, beverage, dairy, and pharmaceutical industries. The hose is available with cover colors in white, blue, green, or customized options. Construction details include a smooth white EPDM rubber tube, textile plies reinforced with steel wire, and an EPDM rubber cover.

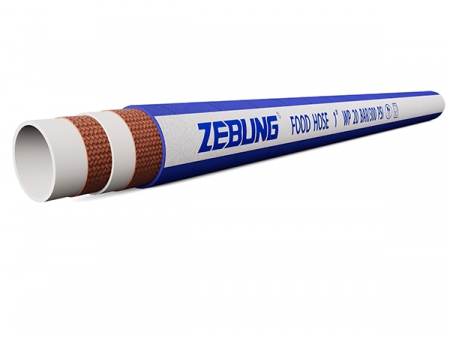

EPDM food discharge hose with braided reinforcement
Reinforcement layer: single/double layer braiding with high-strength textile cord

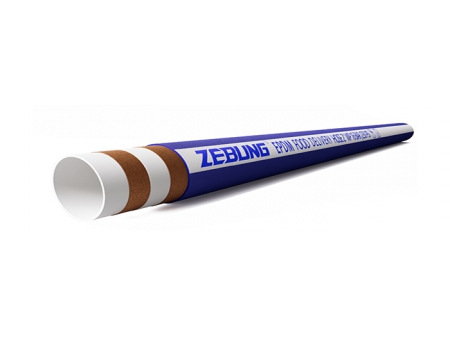

EPDM food discharge hose with spiral reinforcement
Reinforcement layer: high-strength spiral textile cord

Basic Information
  • Inner tube: EPDM rubber (tensile strength ≥13MPa)
  • Outer cover: EPDM rubber (tensile strength ≥13MPa)
  • Operating temperature: -40°C to 150°C
  • Safety factor: 3:1
  • Cover color: Available in white, blue, green, or customized

Features
The EPDM food rubber hose is expertly designed for handling a wide range of liquid food products, from wines and beers to potable water, fruit juices, and milk by-products.

Applications
it's suitable for food and beverage processing and pharmaceutical industries. Customizable options available to meet stringent industry requirements while offering flexibility for specific needs.

1. EPDM Food Discharge Hose with Braided Reinforcement

Item Code Inner Diameter Outer
Diameter
Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
EPDM -FDB013-300 13 1/2" 22 20 300 60 900 0.31 100
EPDM -FDB016-300 16 5/8" 26 20 300 60 901 0.43 100
EPDM -FDB019-300 19 3/4" 29 20 300 60 902 0.48 100
EPDM -FDB025-300 25 1" 37 20 300 60 903 0.67 100

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

2. EPDM Food Discharge Hose (Spiral Reinforcement)

Item Code Inner Diameter Outer
Diameter
Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
EPDM-FDD019-150 19 3/4" 30.4 10 150 30 450 0.59 40
EPDM-FDD025-150 25 1" 36.4 10 150 30 450 0.73 40
EPDM-FDD032-150 32 1-1/4" 43.8 10 150 30 450 0.89 40
EPDM-FDD038-150 38 1-1/2" 50.8 10 150 30 450 1.14 40
EPDM-FDD045-150 45 1-3/4" 57.8 10 150 30 450 1.32 40
EPDM-FDD051-150 51 2" 63.8 10 150 30 450 1.47 40
EPDM-FDD057-150 57 2-1/4" 69.8 10 150 30 450 1.63 40
EPDM-FDD064-150 64 2-1/2" 77.8 10 150 30 450 2.09 40
EPDM-FDD076-150 76 3" 89.8 10 150 30 450 2.44 40
EPDM-FDD102-150 102 4" 116.6 10 150 30 450 3.20 40
EPDM-FDD102-230 19 3/4" 31.2 16 230 48 690 0.59 40
EPDM-FDD025-230 25 1" 37.2 16 230 48 690 0.73 40
EPDM-FDD032-230 32 1-1/4" 44.6 16 230 48 690 0.89 40
EPDM-FDD038-230 38 1-1/2" 52 16 230 48 690 1.20 40
EPDM-FDD045-230 45 1-3/4" 59 16 230 48 690 1.39 40
EPDM-FDD051-230 51 2" 65 16 230 48 690 1.55 40
EPDM-FDD057-230 57 2-1/4" 71 16 230 48 690 1.71 40
EPDM-FDD064-230 64 2-1/2" 79.4 16 230 48 690 2.09 40
EPDM-FDD076-230 76 3" 91.4 16 230 48 690 2.44 40
EPDM-FDD102-230 102 4" 120.2 16 230 48 690 3.86 40
EPDM-FDD019-300 19 3/4" 30.4 20 300 60 900 0.59 40
EPDM-FDD025-300 25 1" 36.4 20 300 60 900 0.73 40
EPDM-FDD032-300 32 1-1/4" 45.8 20 300 60 900 1.15 40
EPDM-FDD038-300 38 1-1/2" 52.6 20 300 60 900 1.32 40
EPDM-FDD045-300 45 1-3/4" 56.6 20 300 60 900 1.44 40
EPDM-FDD051-300 51 2" 59.6 20 300 60 900 1.53 40
EPDM-FDD057-300 57 2-1/4" 65.6 20 300 60 900 1.71 40
EPDM-FDD064-300 64 2-1/2" 81.4 20 300 60 900 2.53 40
EPDM-FDD076-300 76 3" 93.4 20 300 60 900 2.95 40
EPDM-FDD102-300 102 4" 120.6 20 300 60 900 4.25 40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
