Centrifugal Screen

Centrifugal Screen
Centrifugal Screen
Request a Quote

Capacity: 10~100 t/d

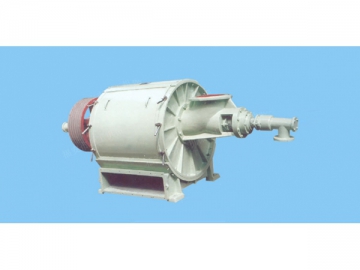

Improved from the CX series screen, our ZSL series centrifugal screen is used to screen a variety of pulps, including chemical pulp and wastepaper pulp. It is also used for the fine screening of stock for paper making machines. This centrifugal machine, also called a centrifugal sifter or centrifugal sieve, features a high screening efficiency, less pulp wastage, no clogging, a low energy consumption, small floor area, and easy operation and maintenance. It is now commonly used as pulp screening equipment for the pulp and paper industry.

Technical Parameters of the Centrifugal Screen
Items Model
ZSL1-0.5 ZSL2-0.9 ZSL3-1.6 ZSL4-2.4
Screening area (m2) 0.5 0.9 1.6 2.4
Capacity (t/d) 10 ~ 15 20 ~ 30 40 ~ 60 60 ~ 100
Rotor size (mm) φ324×538 φ455×645 φ610×880 φ718×1130
Rotor speed (r/min) 750 575 485 450
Inlet diameter (mm) φ150 φ200 φ300 φ345
Screen holes diameter (mm) 1.2 ~ 3.4
Inlet consistency (%) 0.8 ~ 3.0
Outlet consistency (%) 0.6 ~ 1.5
Inlet pressure head (m) 1.2 ~ 2.4
Dilution water pressure (MPa) 0.1 ~ 0.15
Screen cylinder size (mm) Ø340×470 Ø475×600 Ø635×800 Ø747×1065
Motor power (kW) Y132M-4/7.5 Y180L-4/22 Y250M-6/37 Y280M2-6/75
Machine weight (kg) 500 1290 2340 3630
Dimension (L×W×H) mm 2160×1630×700 2670×1850×970 3250×2380×1250 3590×2980×1460
