Blasthole Dewatering Truck
Request a Quote
Dewatering system for mining operations

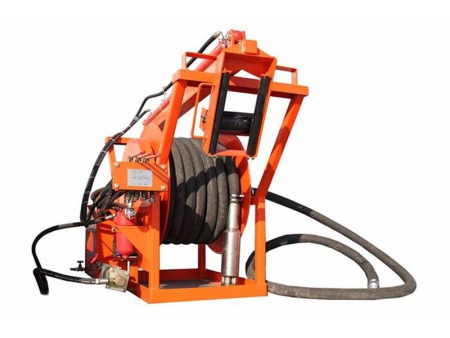

Blasthole dewatering trucks are specialized equipment mainly used to discharge water and mud slurry left in blastholes so as to make the holes qualified to be fed blasting materials. The truck’s discharging function is hydraulically driven by the power take off (PTO) at the chassis, involving hydraulic arm, submersible pump and hose roller.
Features
- The dewatering truck chassis comes from IVECO 4*4 off-road vehicles, giving the truck excellent gradability, obstacle-crossing performance and braking capability;
- The advanced dewatering system ensures safe and easy operation and high efficiency;
- A hydraulic driving mechanism supported by the chassis PTO guarantees the truck’s easy operation.
Technical Parameters
| Capacity of Submersible Pump | 0.34m³/min |
| Dewatering Hose Length | 15m |
| Hydraulic Head of Submersible Pump | 28m |
| Extendable Part of Hydraulic Arm | 0-4m |
| Hydraulic Arm Swing Angle | 15° |
| Overall Dimensions | 5930（L）*1940（W）*2400（H） |
