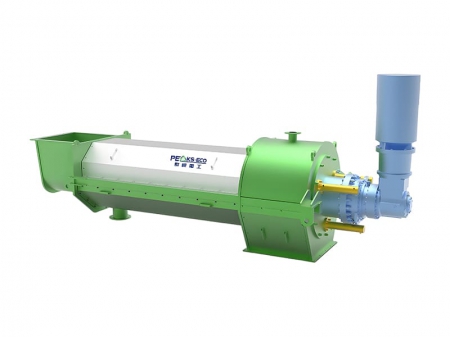

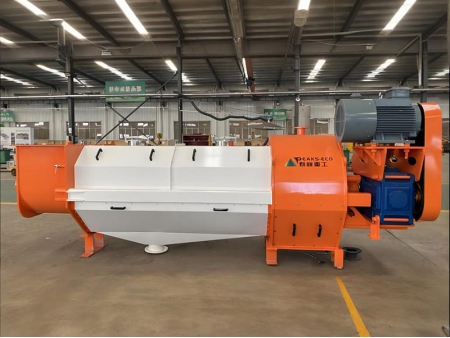

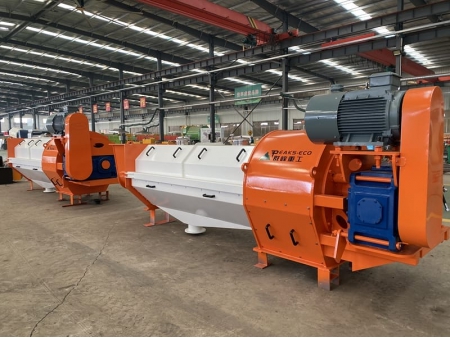

Dewatering Screw Press

Request a Quote

Original: http://wastemachineltd.com/4-3-dewatering-screw-press.html

Dewatering screw press is an efficient solution for pretreating high-organic-content waste like food scraps and kitchen waste. Designed to streamline the process, it shortens pretreatment time, offers quick startup, and adapts easily to various materials.

Our dewatering screw press delivers efficient, continuous processing within a compact footprint, making it ideal for facilities with limited space. It is specifically engineered to handle challenging materials that are prone to clogging, ensuring consistent and reliable operation even under demanding conditions.

With user-friendly operation and low maintenance needs, our dewatering screw press is an ideal choice for efficient and cost-effective waste management.

Main Features

Performance: Dewatering screw press is meticulously designed and manufactured to meet the demands of continuous or intermittent operation, frequent start-stop cycles, and startup under full-load conditions.

Bearings: The machine’s bearings are equipped with a sealing system and use imported brands such as FAG, SKF, or NSK, with bearing temperatures maintained below 65°C.

Gearbox: Dewatering screw press is fitted with imported brand gearboxes, including SEW, Siemens, Hansen, or equivalent.

Sealing: Exposed rotating parts are protected by guards that are bolt-fixed for easy removal and maintenance.

Dewatering Degree: The hydraulic system drives a conical backpressure mechanism to regulate pressure, allowing precise control of the moisture content.

Technical Specifications

Dimensions (L×W×H)	5580×1900×4000mm
Machine weight	Approx. 8T
Screw diameter	650mm
Rotation speed	8-25r/min
Screw pitch	Varying pitch
Pressure adjustment range	0-5MPa
Screen hole diameter	Customizable (slot or hole)
Installation power	37kW 4kW (hydraulic system)
Material of main components	Stainless steel, alloy steel, 45#steel/carbon steel
Max. effective torque	12000N.m
Max. design torque	13000N.m
Max. size of repair part	Ø650×4500
Max. weight of repair part	Approx. 1800kg
Gear reducer	SEW, Siemens, Hansen, or other brands
Motor	Variable frequency motor (domestic reliable brand)
Bearing	FAG\SKF\NSK
Screening size	0-2mm
Screw coating	Hardened with tungsten carbide coating for wear protection
