Disc Pelletizer/Pan Granulator

Request a Quote

Website: http://fertilizermachine-en.com/2-5-disc-pelletizer-pan-granulator.html

Fertilizer Mixing & Granulation Equipment

A disc pelletizer, also known as a pan granulator, is an essential part of compound fertilizer production. It precisely processes powdered or paste-like materials into uniform, spherical granules.

Uniform and spherical granules
It produces uniform, round particles. The size can be precisely controlled by adjusting the disc's rotational speed, material feed rate, and spray volume.
High pelleting efficiency
The disc pelletizer adapts to a wide variety of materials, providing excellent granulation results for both sticky and loose materials.
Simple and stable design
Its relatively simple structure is easy to operate and maintain, ensuring high operational stability. The compact footprint makes it a great choice for spaces with limited room.

Applications

In compound fertilizer production, the disc pelletizer uniformly mixes and granulates raw materials like nitrogen, phosphorus, and potassium, improving the fertilizer's effectiveness.

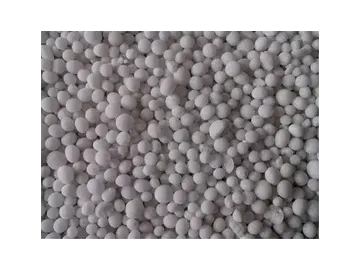

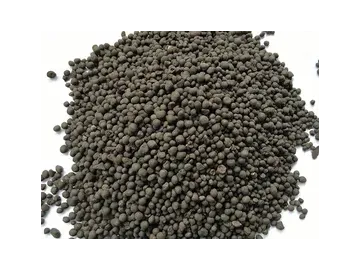

Examples of finished product

Specifications

Model	YP12	YP15	YP18	YP20	YP22	YP25	YP28	YP30	YP32	YP36
Disc Diameter (mm)	1200	1500	1800	2000	2200	2500	2800	3000	3200	3600
Disc Height (mm)	260		300		350		400		500	600
Disc Inclination (°)	40-55
Rotation Speed (r/min)	20		18		15		12		11	10
Production Capacity (t/h)	0.5	1	1.5-2	2-4	4-5	5-6	6-8	8-10	10-12	12-15
Motor Power (kW)	3	4		5.5		7.5	11		15	18.5

The shell is made of Q235 steel, with an internal PVC liner.

Key Components

The main components include a disc, a transmission device, a scraper, a spraying device, and the frame. The disc is made from high-strength, corrosion-resistant steel, offering excellent wear resistance and stability.
This disc pelletizing machine is suitable for various powdered and paste materials, including inorganic/organic fertilizers and chemical agents. It offers a high return on investment and is often used in situations where a precise, round granule shape is required.

On-Site Cases

Yantai Haizhou Biotechnology organic fertilizer production line equipped with our YP22 disc pelletizer.

Liaoning Yuanheng Biotechnology compound fertilizer production line equipped with our YP28 disc pelletizer.

Heshengdao Fertilizer (Yantai) compound fertilizer production line equipped with our YP30 disc pelletizer.
