Industrial Bakeware with 20 Years of Expertise

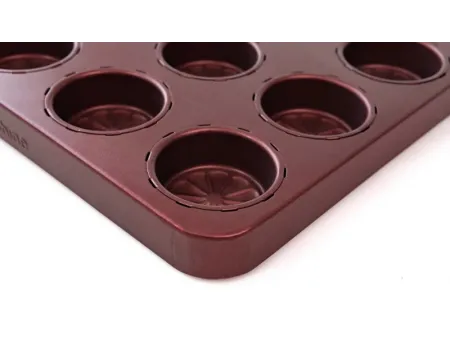

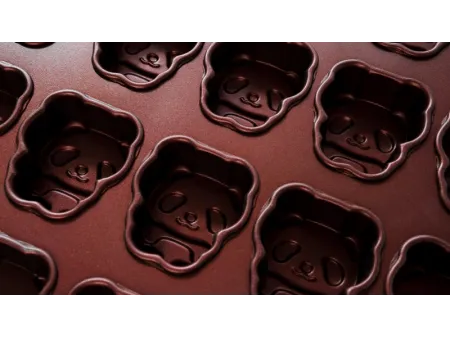

Our cupcake and muffin pans come in various sizes, shapes, and dimensions, with flexible customization options tailored to customer requirements. In addition to standard round and rectangular options, we can manufacture custom-shaped pans, including square, rectangular, and special designs such as panda, pig, orange, and other creative shapes.
All custom-shaped cake pans feature our T-ReXL ultra Non-stick coating, which extends their lifespan by 2–3 times compared to traditional double-layer PTFE coatings. This coating also reduces the need for oil during baking, lowers production costs, and enhances the flavor and quality of the finished baked goods.
Request A Quote
Product Sample
Specifications
Round Cake Pan
- Model:
TS3011 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions: 600×400 mm
- Thickness: δ0.8 mm
- Special Design: 40 cups
- Model:
TS3019 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 35 cups
- Model:
TS3013 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ1.0 mm
- Special Design: 12 cups
- Model:
TS31313 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 800×600×40 mm
- Thickness: δ0.8 mm
- Special Design: 48 cups
- Model:
TS3018 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×23.4 mm
- Thickness: δ1.0 mm
- Special Design: 15 cups
Donuts Pan
- Model:
TS3009 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ1.0 mm
- Special Design: 24 cups
Rectangle Cake Pan
- Model:
TS3014 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×28 mm
- Thickness: δ1.0 mm
- Special Design: 36 cups
- Model:
TS31359 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×25 mm
- Thickness: δ0.8 mm
- Special Design: 48 cups
Shell Cake Pan
- Model:
TS3005 - Surface Treatment: Silicon
- Material: Al-steel
- Dimensions (L×W×H): 600×400×20 mm
- Thickness: δ0.8 mm
- Special Design: 35 cups (drawn)
- Model:
TS3008 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×27 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups (deep)
Oblong Cake Pan
- Model:
TS3205 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 720×400×25 mm
- Thickness: δ0.8 mm
- Special Design: 48 cups
Meat Floss Cake Pan with Lid
- Model:
TS3001 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×32 mm
- Thickness: δ0.6 mm
- Special Design: 40 cups
- Size Diagram:
- Model:
TS3003 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×32 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups
- Size Diagram:
- Model:
TS3001-G - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×26 mm
- Thickness: δ0.6 mm
- Special Design: 40 cups
- Size Diagram:
- Model:
TS3003-G - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×28 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups
- Size Diagram:
Square Cake Pan
- Model:
TS3203 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 720×400×33 mm
- Thickness: δ0.8 mm
- Special Design: 45 cups
Oval Cake Pan
- Model:
TS3023 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 36 cups
Specially Shaped Cake Pan
Heart-Shape Cake Pan
- Model:
TS3010 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×28 mm
- Thickness: δ1.0 mm
- Special Design: 35 cups
Orange Slice Cake Pan
- Model:
TS3006 - Surface Treatment: Silicon
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ1.0 mm
- Special Design: 35 cups
Orange Slice Cake Pan
- Model:
TS3017 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 720×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 36 cups
Plum Blossom Cake Pan
- Model:
TS3007 - Surface Treatment: Silicon
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×38 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups
Straight Croissant Pan
- Model:
TS3022 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×25 mm
- Thickness: δ1.0 mm
- Special Design: 30 cups
Banana Cake Pan
- Model:
TS3025 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 27 cups
Pumpkin Pan
- Model:
TS32203005 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×32 mm
- Thickness: δ1.0 mm
- Special Design: 192 cups
Banana Cake Pan
- Model:
TS3201 - Surface Treatment: Silicon
- Materials: Al-steel
- Dimensions (L×W×H): 720×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 33 cups
Star Cake Pan
- Model:
TS32207009 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×40 mm
- Thickness: δ0.8 mm
- Special Design: 30 cups
Pineapple Cake Pan
- Model:
TS32311043 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×30 mm
- Thickness: δ0.8 mm
- Special Design: 30 cups
Olive Cake Pan
- Model:
TS32311042 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×40 mm
- Thickness: δ0.8 mm
- Special Design: 30 cups
Fresh Yeast Bread Pan
- Model:
TS2397 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×480×25 m
- Thickness: δ1.0 mm
- Special Design: 6 cups
Paw Cake Pan
- Model:
TS31335 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 720×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 28 cups
Panda Cake Pan
- Model:
TS32212013 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×35 mm
- Thickness: δ0.8 mm
- Special Design: 32 cups
Bear Cake Pan
- Model:
TS32312026 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×55 mm
- Thickness: δ0.8 mm
- Special Design: 12 cups
Al-Steel Pans with Coating
Selection Chart
Customized Service
Cupcake Pan & Muffin Pan Type
With lid
Without lid
Material
Al-steel
Thickness
0.8mm 1.0mm
Main
- A. Overall length
- B. Overall width
- C. Height
- D. Cup top dia.
- E. Cup bottom dia.
- F. Cup depth
- G1. Cup-to-cup length
- G2. Cup-to-cup width
Cup Shape
Shape
Right-angle corner
Filleted corner
Frame
Bending forming
Closed frame
No coating T-ReXL PTFE Silicon
