Fertilizer Mixing & Granulation Equipment
Vertical Pan Mixer
Request a Quote

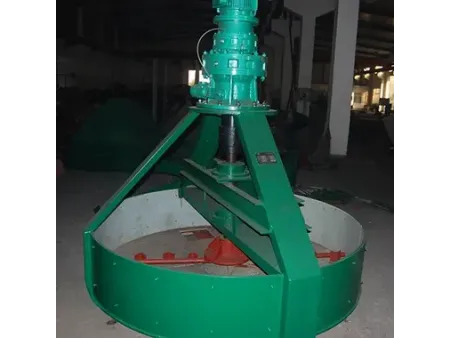

A vertical pan mixer is designed for the efficient mixing of powdered or granular materials, typically used during the raw material batching phase.
- Small footprint
The compact size of the equipment requires minimal floor space, making it an ideal choice for factory expansions or retrofits.
- Low energy consumption
It uses less power compared to horizontal mixers.
- Easy maintenance
Its simple, low-profile design is easy to clean and maintain, helping to minimize downtime.
Applications
- Compound fertilizer production: The vertical pan mixer is essential for uniformly blending raw materials like nitrogen, phosphorus, and potassium, which lays the foundation for high-quality compound fertilizer.
- Food industry: It's used to mix various ingredients, ensuring consistent product quality.
- Building materials: The mixer efficiently blends materials like cement and sand to produce stable building materials.
Specifications
| Model | | | | | | | | |||
| Pan Diameter (m) | Ø1.6 | Ø1.8 | Ø2.0 | Ø2.2 | Ø2.5 | Ø2.8 | Ø3.0 | Ø3.2 | ||
| Pan Height (mm) | 500 | 550 | 600 | |||||||
| Input Size (mm) | ≤50 (non-sticky) | |||||||||
| Rotation Speed (r/min) | 16 | 15 | 13 | 11 | ||||||
| Production Capacity (t/h) | 5-8 | 8-10 | 10-12 | 12-15 | 15-18 | 18-20 | 20-22 | 22-25 | ||
| Power (kW) | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 22 | ||
The shell is made from Q235 steel, with an internal PVC liner.

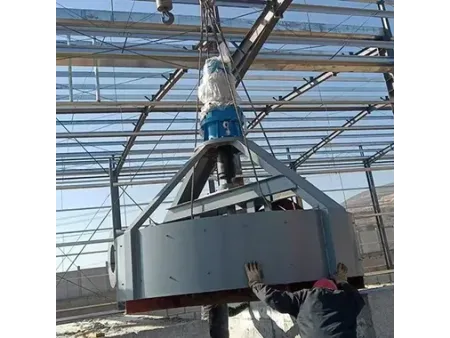

On-Site Cases
Jiangxi Kaimenzi Agricultural Chemical Co., Ltd., a 100,000-ton compound fertilizer production line uses our LJ2000 vertical pan mixer.
Anhui Ningguo Siert Group’s 200,000-ton compound fertilizer production line uses our LJ3000 vertical pan mixer.
Hubei Yangfeng Group’s 100,000-ton compound fertilizer production line uses our LJ2000 vertical pan mixer.
