Rotary Drum Granulator
Request a Quote
Rotary drum granulator processes powdered or paste-like materials into uniform, granular particles. It's a key machine in fertilizer production, used for both organic and inorganic fertilizers.
Features
Rotary drum granulators are suitable for large-scale production of high, medium, and low-concentration fertilizers. These fertilizer machines feature a special rubber or acid-resistant stainless steel lining that helps materials detach and fall away, preventing buildup.
Key Components

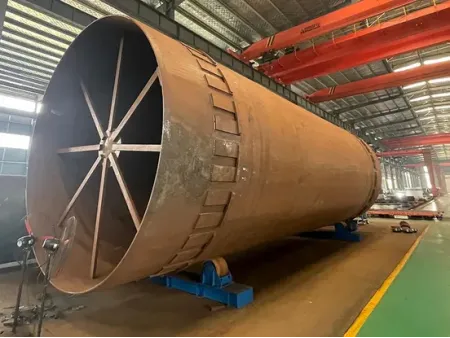

This fertilizer granulation machine is mainly composed of a rotating drum, a transmission device, an inlet, an outlet, and internal granulation components.

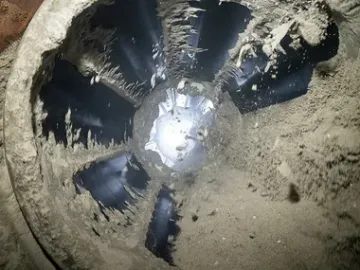

Sample picture during granulation process
Examples of spray granulated materials
Specifications
| Drum Size (m) | Drum | Production Capacity (t/h) | Main Motor | Main Reducer | Dimensions (L×W×H) (mm) | Weight (t) | |||||
| Inner Diameter (mm) | Length (mm) | Inclination (°) | Rotation Speed (r/min) | Model | Power (kW) | Model | Ratio | ||||
| Ø1.8×6 | 1800 | 6000 | 2.5 | 12.39 | ~8 | Y200L1-6 | 18.5 | ZL42.5 | 10 | 8000×3335×3350 | 16.0 |
| Ø1.8×8 | 1800 | 8000 | 2.5 | 12.39 | ~10 | Y225M-6 | 30 | ZL50 | 10 | 10000×3380×3350 | 17.6 |
| Ø2.0×8 | 2000 | 8000 | 2.5 | 10.8 | ~14 | Y250M-8 | 30 | ZL50 | 8 | 12000×3900×3750 | 26.3 |
| Ø2.0×10 | 2000 | 10000 | 2.5 | 10.8 | ~16 | Y250M-8 | 30 | ZL50 | 8 | 14000×3900×3750 | 28.0 |
| Ø2.2×8 | 2200 | 8000 | 2.5 | 10.7 | ~20 | Y280S-8 | 37 | ZL60 | 9 | 9500×4410×3900 | 29.0 |
| Ø2.4×8 | 2400 | 8000 | 2.5 | 9.75 | ~25 | Y250M-4 | 55 | ZL65 | 14 | 10290×4636×4955 | 42.0 |
| Ø2.6×10 | 2600 | 10000 | 2.0 | 9.17 | ~30 | Y280M-6 | 55 | ZL65 | 14 | 12200×4850×4262 | 43.0 |
| Ø2.8×8 | 2800 | 8000 | 1.5 | 9.18 | ~35 | Y315M-6 | 90 | ZL85 | 11.2 | 10175×5455×5264 | 53.0 |
| Ø3.0×8 | 3000 | 8000 | 1.1 | 9.8 | ~45 | Y315M-4 | 132 | ZL100 | 18 | 9915×6700×5608 | 60.0 |
| Ø3.2×10 | 3200 | 10000 | 1.8 | 8.54 | ~50 | Y315L1-4 | 160 | ZL100 | 20 | 12100×5050×5800 | 75.2 |
The shell is made of Q235 steel with an internal rubber liner. The spray nozzle is made of stainless steel.
On-Site Cases
Lutian Fertilizer Co., Ltd. equipped with our Ø2.2×8m rotary drum granulator for production line.
Yunnan Zichen invested in our Ø2.0×7m rotary drum granulator.
Guizhou Ketai Jinfo Agriculture uses our Ø2.4×10m rotary drum granulator.
