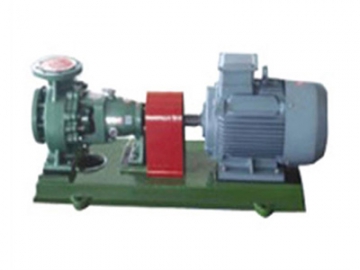

IHF-1 Series Centrifugal Pumps
Request a Quote
These centrifugal pumps are interchangeable with IH series pumps. According to customer requirements, the IHF-1 series pumps feature a plastic lining structure with flow passage made from fluoroplastic. After sintering, the fluoroplastic are closely attached to the steel to ensure a flawless, efficient operation. The mechanical seal use alumina ceramics, SiC, nickel base alloys, cobalt base alloys and tetrafluoroethylene, ensuring these pumps have the same strength as metal pumps, but are also resistant to various chemicals, high temperatures, high pressures and highly corrosive materials. They are economical choices for applications in almost every industry and have a long service life.
Technical Parameters
- Shaft seal type: engine drive
- Casing & impeller materials: HT200，F46, PFA
- Max rated pressure at 20℃: PN16
- Max fluid temperature: -80℃/ 120℃
- Max flow rate at 2900 rpm: 480m³/h
- Max head at 2900 rpm: 125m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.55～160kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
