JK830-2

Surface drilling equipment
Borehole diameter: 138-235mm
Drill rod length: 6m
Drilling depth: 36m

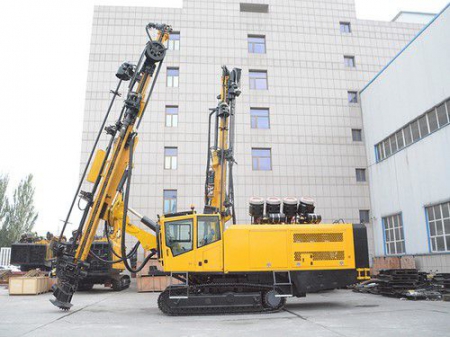

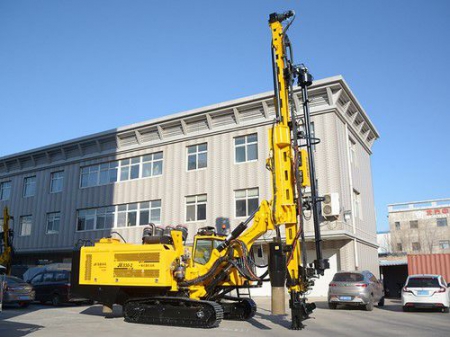

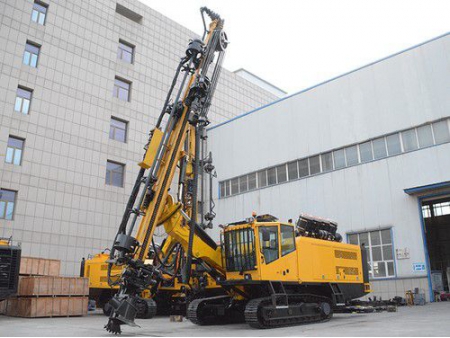

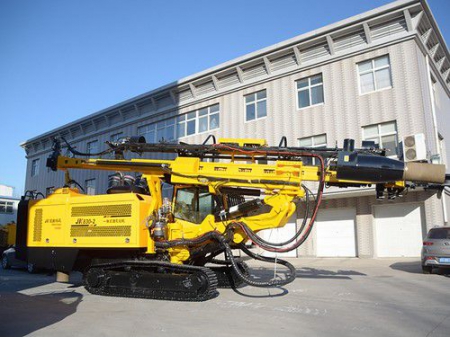

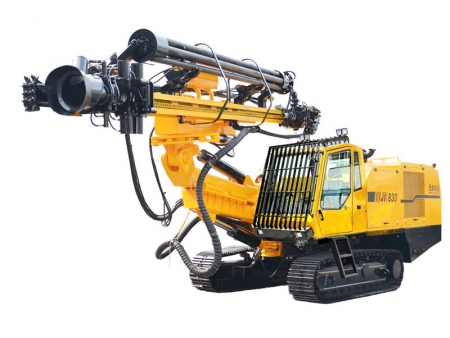

JK830-2 Integrated Hydraulic DTH Drilling Rig

JK830 integrated hydraulic DTH drilling rig is designed to drill large bore holes (138-235 mm). It features automation, high work efficiency, reliability and simple operation.

The built-in Atlas Copco air compressor ensures intake of clean air. Equipped with FOPS-certified cabin, the rig offers comfortable driving experience. The automatic rod changer increases work efficiency while the heavy-duty undercarriage with wide tracks ensures both maneuverability and safety. The hydraulic dust collecting system meets the environmental protection regulations and provides a reliable solution to realize the modern green mining. The rig enables all the operations and control over the rig with a single control panel.

Designed to enable safer, more efficient, and lower cost operations while reducing downtime, the system can be configured with any number of HMIs.

The JK830 interfaces with key rig components using remote I/O mounted on the drawworks, top drive, mud pump and drill floor. All controls are enabled from the cabin through a combination of touchscreen, discrete operator and simple joystick controls.

JK Drilling is ready to work with you to tailor products that are outstanding in terms of performance, efficiency and safety while maximizing equipment service life.

Experienced technical and service team members are available 24/7 to ensure safe and efficient drilling operations.

Applications
The integrated drilling rig is mainly applied for hydro-power engineering, open pit mining, road construction and blasting operation of national defense engineering.

Optional
Optional stick-slip mitigation device: used to reduce stick-slip vibration during rotary drilling. The device offers a number of advantages that allow customers to drill more efficiently for a long period of time.

Features
  • Automatic feeding and drilling capability enables operation by one person.
  • Rexroth’s and Eaton’s hydraulic control valves deliver large torque output to satisfy the needs of large borehole diameters.
  • The powerful diesel engine provides strong impulsive force, feeding force and rotation speed that can be flexibly adjusted based on the hardness of rocks.
  • Equipped with Atlas Copco two-stage air compressors, the rig features high drilling efficiency and quality.
Technical Specifications
Model JK830-2
General Weight kg 25000
Length mm 12300
Width mm 3200
Height mm 3500
Undercarriage Track length mm 3646
Ground contact length mm 2912
Track center distance mm 2349(total width 2749)
Track width mm 400
Ground clearance mm ≥400
Track oscillation ° ±10°
Walking motor Eaton
Walking speed Km/h 1.6(low), 3(high)
Max. tractive force KN 170
Grade ability ° 20°
Engine Model QSZ13-C450-30 (Cummins)
Type Water-cooled 6-cylinder EFI diesel engine
Rated power Kw/rpm 335/2100
Fuel tank capacity L 1015
Hydraulic pump/valve Main pump Variable load-sensing piston pump
Main valve Load-sensing valve
Manufacturer Rexroth
Air compressor Model Atlas Copco
Type Dual stage rotary screw air compressor
Working pressure bar 24
Max. free air delivery (FAD) m³/min 30
Rotary motor Hydraulic rotation unit Dual motors (Eaton)
Rotation rate rpm 0-120
Max. rotation torque N.m 3900
Feeding method Motor-driven planetary gearbox chain
Fast feeding rate m/min 45
Feeding rate m/min 0-11
Max. lifting rate m/min 11
Feeding force kN 0-40 (adjustable)
Lifting force kN 40
Feeding boom Length mm 10320
Feeding stroke mm 6730
Feed extension mm 1600
Swing angle ° Left 95° Right 35°
Drilling arm Type mm Telescopic single straight boom (length 760mm)
Tilt angle ° 40°(up), 15°(down)
Swing angle ° Left (cabin side)9°,
Right 31°
Drill rod exchanger Rod diameter mm 102/114
Rod length m 6
Drilling diameter mm 138-235
Drilling depth m 36
Rod capacity pc 5 1
Hammer specs 5'/ 6'/ 7'/ 8'
Dust collector Filter element 20
Collecting method Hydraulic dust collection system
Dust cover Float up and down
Main Components

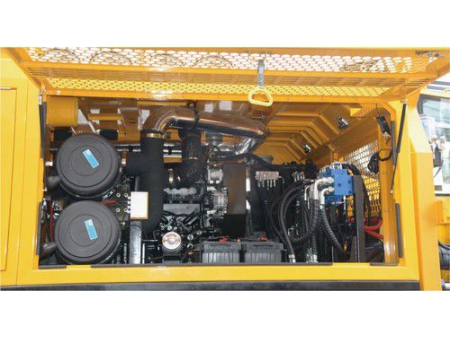

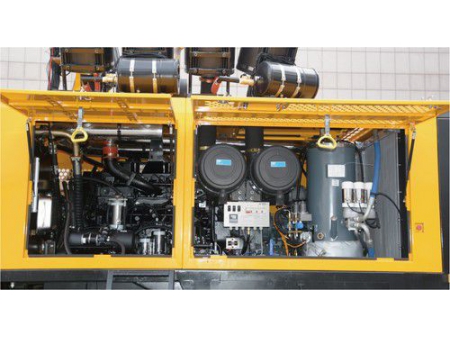

  • Power system
    High-power turbocharged direct injection engine with water cooling function delivers reliable performance and is energy-saving.
    The three-stage air filter system ensures intake of clean air and greatly reduces the engine failure rate.
  • Air compressor
    Atlas Copco two-stage air compressor with strong air output is reliable and powerful. It is applicable to rock formations of various hardness and offers a high penetration rate with ease.
  • Control system
    The FOPS-certified enclosed cabin is equipped with an air conditioner, which meets the labor protection standards of the US and Europe.

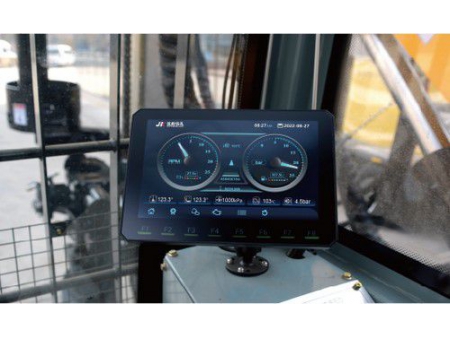

    The dashboard clearly displays the operational parameters, prompts and warning in real time for convenient monitoring and precise hole drilling.

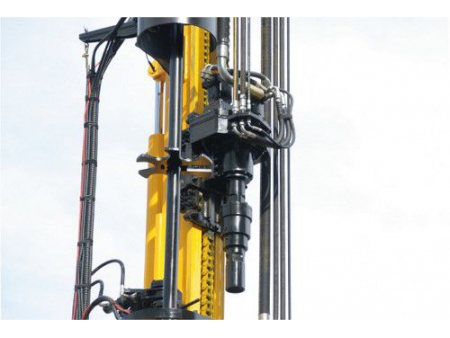

  • Rotation unit system
    The rotation unit is equipped with a floating joint which can reduce vibration as well as protect rod threads when loading and unloading drill rods. It's easy to adjust and has a long service life.

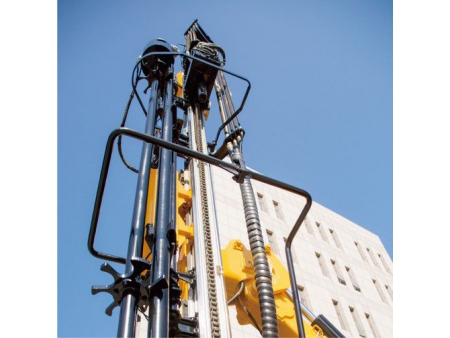

  • Automatic rod changer
    It is simple to operate the automatic rod changer to control rod storage, rod loading, unloading and movement of machine clamp.
    Adopting a clamping design, the changer can easily unload the rod and increase work efficiency.
    With one button, the system can automatically change rods.

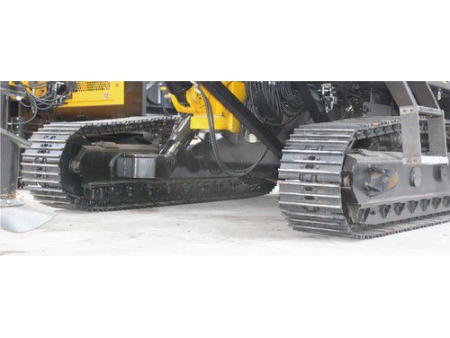

  • Undercarriage
    The undercarriage adopts a robust design of four wheels and one track. Widened tracks enable smooth travelling and strong climbing capability to support heavy-duty drilling jobs.
