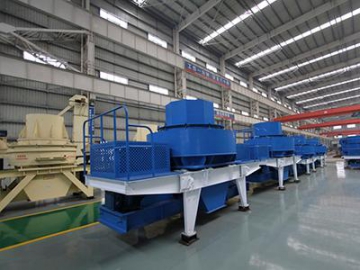

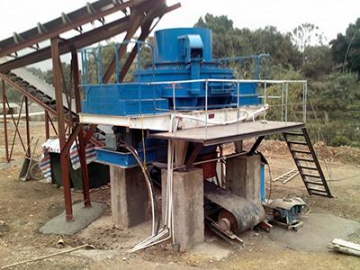

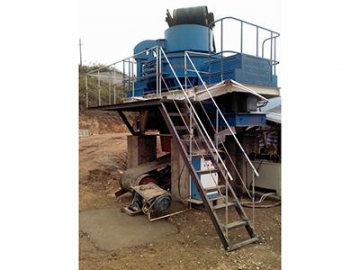

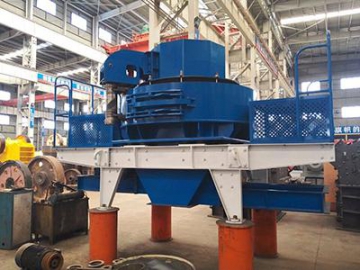

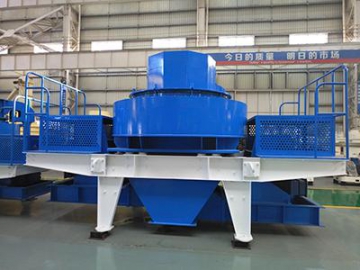

Stone Crushing Sand Maker
Request a Quote
Application
The stone crushing sand maker from Vostosun operates to provide users with high quality stone aggregate for building, highway or railway construction, public works, large water conservancy facilities, concrete batching plant and other fields. The stone crushing sand maker is auxiliary equipment for artificial sand making and stone shaping applications.
Model | HXVSI-7611 | HXVSI-8518 | HXVSI-9526 | HXVSI-1140 | |
central feeding with cascade feeding (t/h) | 120-180 | 200-260 | 300-380 | 450-520 | |
central feeding (t/h) | 60-90 | 100-130 | 150-190 | 225-260 | |
Max feeding size of soft material (mm) | 35 | 40 | 45 | 50 | |
Max feeding size of hard material (mm) | 30 | 35 | 40 | 45 | |
Rotational speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Double motor power (kW) | 4P 110 | 4P 180 | 4P 264 | 4P 400 | |
Overall dimension (L×W×H) (mm) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
Total weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | |
Power supply | 380V 50HZ | ||||
Lubrication station | Double pump motor power | 2×0.31kW | |||
Overall dimension (L×W×H) (mm) | 820×520×1270 | ||||
Tank heater power | 2 kW | ||||
| | | |
- High crushing rate: stone on metal crushing cavity, higher crushing efficiency.
- Large throughput: larger throughput with deep cavity rotors.
- Easy to maintain: easy to inspect, repair and maintain with an integrated hydraulic opening and closing device.
- Excellent product shape: cube product, fine grain shape, reasonable grading and adjustable fineness.
