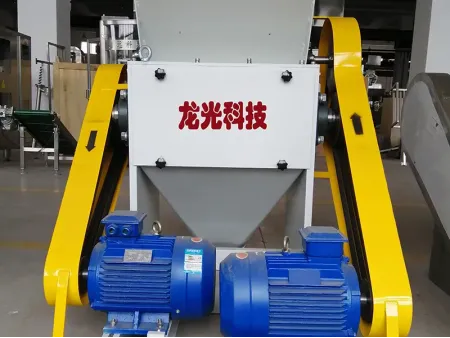

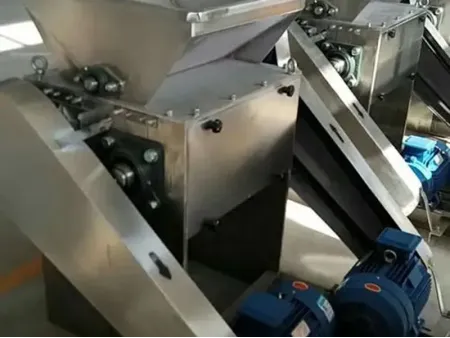

Urea Crusher

Request a Quote

View All: http://fertilizer-granulators.com/2-5-urea-crusher.html

Double roll crusher for crushing urea particles into fine powders

Urea crushers use the combined forces of compression and shearing generated by two counter-rotating rollers to efficiently reduce the size of the urea particles. Commonly used in fertilizer production lines, this crusher ensures uniform particle size distribution, crucial for optimal fertilizer application. Additionally, it supports high-capacity operations and can be integrated into various production processes, making it an essential tool for improving product quality and production efficiency. This crushing equipment is especially useful in handling urea-based fertilizers, where consistent particle size is important to enhancing performance.

Specifications

Model	NPS600	NPS800	NPS1000
Production capacity (t/h)	2-3	3-5	5-8
Feeding size (mm)	≤5	≤5	≤5
Final size (mm)	0.2-0.5 (some are less than 0.2)	≤0.2-0.5 (some are less than 0.2)	≤0.2-0.5 (some are less than 0.2)
Rev. (r/min)	800-1000	800-1000	800-1000
Motor power (kW)	5.5*2	7.5*2	11*2

Features

The crusher and the rollers are made from 304 stainless steel, providing excellent corrosion resistance for reliable and long-lasting use.
The adjustable particle size allows for fine-tuning, ensuring the output can be tailored to specific production requirements.
With independent roller drive systems, the urea crusher ensures smooth and stable performance, thanks to the well-designed roller speed and fine-slanted gear surfaces.
This crushing system is designed to be easy to operate, requiring minimal maintenance with no easily worn parts or dust emissions, eliminating the need for additional dust collection systems.
A safety grille at the feed inlet enhances operational safety by preventing large debris or foreign materials from entering the crusher during operation.
