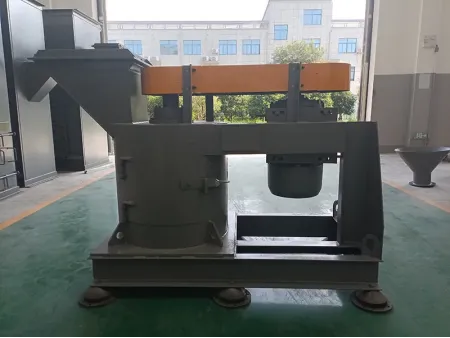

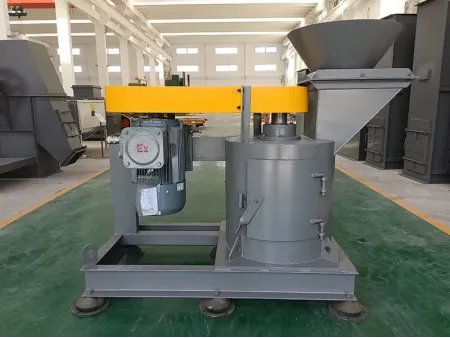

Vertical Chain Crusher

Request a Quote

View All: http://fertilizer-granulators.com/2-9-vertical-chain-crusher.html

Fertilizer crushing machine for processing medium-hard materials

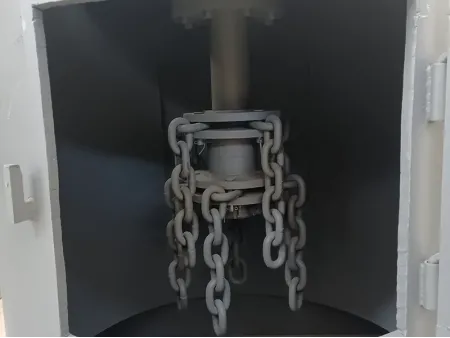

Vertical chain crushers are widely used in the fertilizer industry to crush medium-hard materials such as solid chunks of fertilizer. It features high-strength, wear-resistant alloy chain plates that rotate at synchronized speeds, ensuring efficient and uniform material breakdown. With a thoughtfully designed feed and discharge system, it helps maintain consistent material size while preventing blockages or adhesion inside the chain crushing machine, making it easier to clean. Its robust construction and reliability make it widely applicable not only in fertilizer production but also in industries such as chemical processing, construction, and mining, where consistent and efficient material processing is essential.

Specifications

Model	Power (kW)	Rev. (r/min)	Production capacity (t/h)	Feeding size (mm)	Final size (mm)
LP600	18.5	1470	5	≤20	≤1 (with the percentage of over 70%)
LP700	22	1470	8	≤25	≤1 (with the percentage of over 70%)
LP800	30	1475	12	≤30	≤1 (with the percentage of over 70%)
LP1000	37	1480	15	≤35	≤1 (with the percentage of over 70%)
