Automatic Rigid Box Corner Pasting Machine, LY-600
Request a Quote

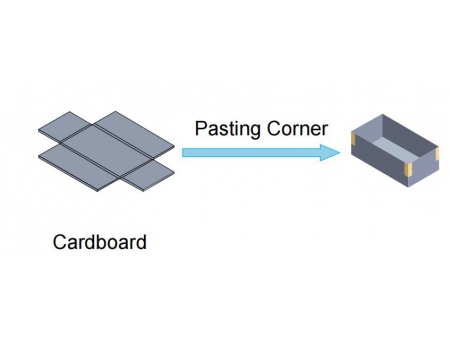

Used for applying tapes on four corners of box blank
The LY-600 automatic rigid box corner pasting machine is designed for corner pasting of all kinds of two-piece boxes. As it featuring automatic functions, the corner pasting machine can paste the four corners of a box in one go, delivering consistent quality while saving significant labor costs and increasing production efficiency exponentially.

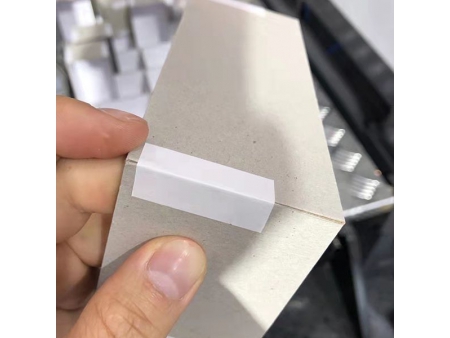

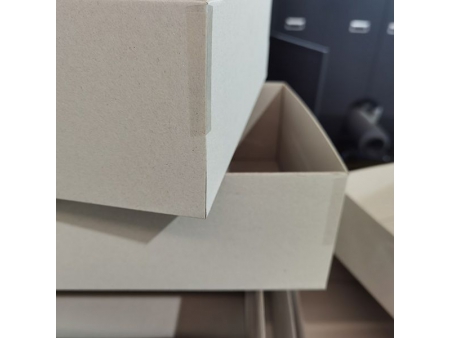

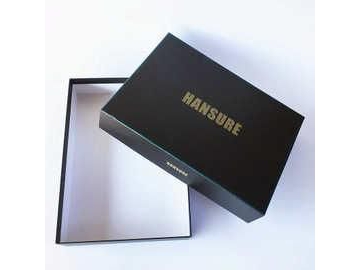

Sample BoxesParameters
| Product Model | LY-600 |
| Cardboard Thickness | 1.2-4 mm |
| Min. Box Dimension | 50 mm*50 mm*10 mm |
| Max. Box Dimension | 480 mm*450 mm*150 mm |
| Manufacturing Speed | 35-50 pcs/min |
| Voltage | 220 V |
| Rated Power | 3.0 kW |
| Overall Size | 1900 mm*1200 mm*1900 mm |
| Weight | 1000 kg |
- The rigid box corner pasting machine reduces manual labor, and can paste box corners with high, low, or turned edges.
- The production speed can be intelligently adjusted in real-time to meet production capacity needs.
- The corner pasting machine features easy operation with built-in alarm prompts in case of malfunctions.
- The rigid box pasting machine has compatibility with both fully automatic and semi-automatic production lines.
- Real-time production data can be collected for easy record-keeping.
- A single-arm pressing device is combined with a temperature control system for precise and consistent results.
- Eco-friendly hot melt adhesive tape, which is adjustable between 5-35mm, is used for corner pasting.
- A suctioning device is installed below for gentle and stable box placement onto the conveyor belt.
