Manual Rigid Box Corner Pasting Machine, LY-TJ-40
Request a Quote

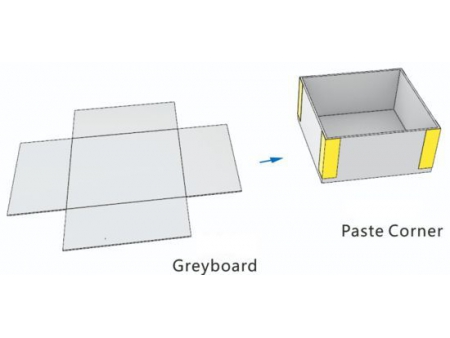

Used for applying tapes on four corners of box blank
The LY-TJ-40 manual rigid box corner pasting machine is perfect for pasting four corners of rigid boxes, creating perfect right angles. It is a must-have box equipment for making gift boxes and paper boxes and is popular worldwide.

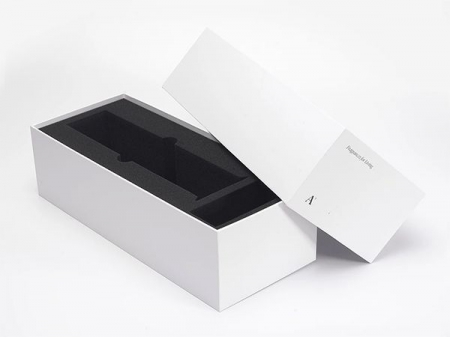

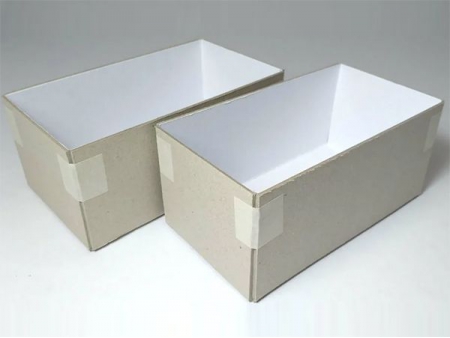

Display of Finished ProductsThe manual rigid box corner pasting machine has an upper and lower frame with an eccentric wheel that rotates to drive the upper die for corner pasting. It features user-friendliness, high speed production, low labor intensity, stable performance, and reliable operation. This manual rigid box corner pasting machine is ideal for the gift box and paper box packaging industry.
Features- Characterized by a reasonable structure, flexible and reliable operation, and easy maintenance.
- Taking up very little space, with the overall dimensions of only 600 mm*300 mm*1450 mm.
- Featuring low power consumption, high power output, and low cost.
| Product Model | LY-TJ-40 |
| Voltage | 220 V / 50 HZ |
| Rated Power | 0.37 kW |
| Min. Box Dimension | 40 mm*40 mm*10 mm |
| Finished Box Height | 10-300 mm |
| Manufacturing Speed | 20-40 pcs/min |
| Overall Size | 600 mm*300 mm*1450 mm |
| Weight | 150 kg |
