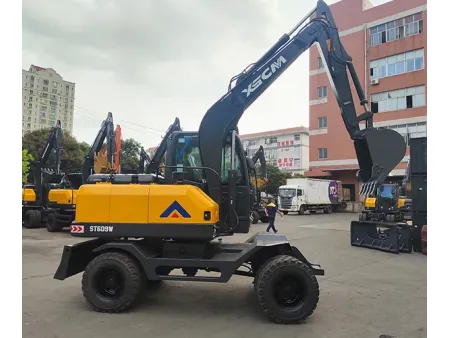

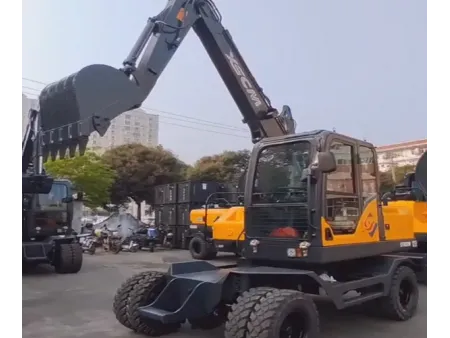

ST609W Compact Wheel Excavator
Compact wheel excavator compatible with log grapples, buckets, breakers, and other attachments for forestry, construction, and municipal projects
- Rated power
48kW/2200rpm - Operating weight
6550kg - Rated load
500kg - Bucket capacity
0.27m³
The ST609W wheel excavator is designed with sustainability and operator comfort in mind, combining powerful performance with reduced environmental impact. It integrates advanced technologies that enhance fuel efficiency, lower emissions, and improve long-term reliability for a wide range of professional applications.
Operating Range
| Boom length | 3400mm |
| Arm length | 1900mm |
| Max. digging reach | 6498mm |
| Max. digging depth | 3344mm |
| Max. digging height | 6766mm |
| Max. dumping height | 4986mm |
| Min. platform tail turning radius | 1863mm |
Dimensions
| Overall width | 2050mm |
| Overall height | 2861mm |
| Wheelbase | 2500mm |
| Distance from digging arm to rotating center | 4203mm |
| Overall length | 6066mm |
| Min. ground clearance | 240mm |
| Height of dozer blade (optional) | 460mm |
| Dozer blade rising distance/lowering distance | 437/80mm |
Technical Parameters
| Rated power | 48kW/2200rpm |
| Operating weight | 6550kg |
| Rated load | 500kg |
| Bucket capacity | 0.27m³ |
| Hydraulic working pressure | 25Mpa |
| Max. digging force | 48kN |
| Gradeability | 59% (30°) |
| Travel speed | 30km/h |
| Max. traction force | 65kN |
| Swing speed of platform | 10.5rpm |
| Fuel tank capacity | 145L |
| Hydraulic tank capacity | 100L |
Compliant with China stage IV emission standards
Equipped with the latest Yuchai engine and advanced common rail and turbocharged technology, the excavator achieves cleaner combustion, reduced fuel consumption, and significantly lower emissions, cutting fuel use by up to 15% compared to previous models.
Diesel particulate filter (DPF) for clean air
The integrated DPF system effectively captures and burns particulate matter (PM), reducing black smoke and harmful exhaust particles, helping to improve air quality on and off the job site.
- Modular cooling system
- Precision-engineered hydraulic pump, load-sensing system, and power-adjusted variable piston pump
- Eco-friendly transmission and axles
- Enhanced panoramic visibility
- Ergonomic seating for all-day comfort
- Advanced climate control system
Integrated Bluetooth multimedia system
Smart digital dashboard - Ergonomic control layout
