Side Entry Mixer
Request a Quote
View All: http://paper-equipment.com

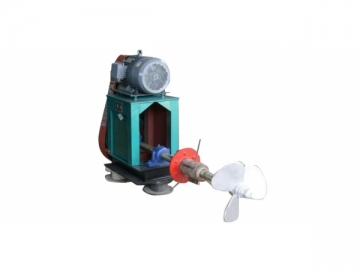

The side entry mixer comprises the impeller, mixer body, main shaft, connecting ring and bearing. It is driven using a V-belt and lubricated using a pressure washer. This side entry agitator, known as a horizontal agitator or mixer, features a reasonable design, and is easy to maintain. It also ensures a 20-30% increase of the mixing efficiency over traditional pulp mixing machines.
Technical Parameters of Side Entry MixerModel | |||||
Square chest volume (m3) | 12-15 | 40-60 | 60-70 | 70-80 | 100-120 |
Washing chest volume (m3) | 15-25 | 35-40 | 40-50 | 50-60 | 70-80 |
Pulp consistency (%) | 4-7 | 4-7 | 4-7 | 4-7 | 4-7 |
Impeller diameter (mm) | 500 | 700 | 750 | 1000 | 1250 |
Speed (r/min) | 346 | 302 | 302 | 200 | 200 |
Motor (Kw) | 7.5 (5.5) | 11 (5.5) | 15 (7.5) | 22 (15) | 30 (18.5) |
Weight (Kg) | 540 | 620 | 680 | 1300 | 1600 |
