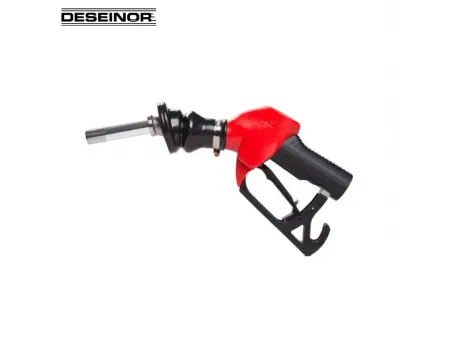

Vapor Recovery Nozzle
Our vapor recovery nozzle is a pressure-activated, automatic shut-off, vacuum-assisted fueling nozzle suitable for suitable for full-service stations, self-service pumps, and automated unattended fueling systems. Designed for fuel dispensing and gasoline vapor recovery applications, DESEINOR provides a comprehensive solution.
These nozzles serve as key components in a vacuum-assisted system, which integrates a high-efficiency vapor valve within the nozzle. When the nozzle lever is engaged, the system, paired with a vacuum pump, activates the vapor valve to draw vapors back into the underground storage tank.
The DESEINOR vapor recovery nozzle consists of a nozzle body, fuel inlet body, vapor valve, flow control-assisting tilt poppet, vapor return, fuel outlet pipe, and handle assembly. The entire unit is constructed with durable materials, maintaining a compact, ergonomic design for smooth operation.
| Model | GY-vapor recovery |
| Inlet size | 3/4” |
| Thread | NPT/BSPP |
| Temperature | -25℃-55℃ |
| Flow rate | 42-45L/min |
| Body material | Stainless steel/plastic |
| Working pressure | 0.05-0.35MPa |
| Color | Red |
| Packaging | 10pcs/pack |
